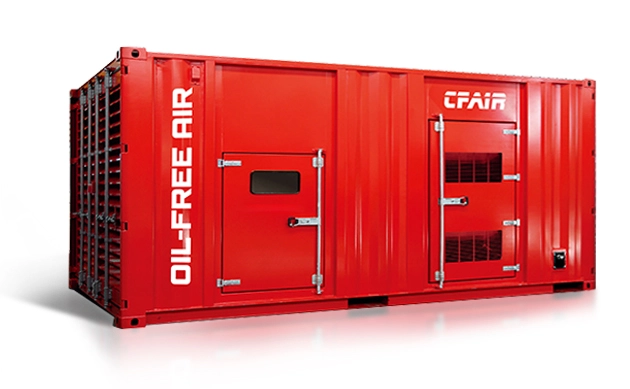

The CFOF1300cfm snowTier 4 Final portable air compressor is engineered to deliver Class 0 Oil-Free Air in a compact and versatile package. Whether for short-term assignments or long-term projects, this compressor is equipped with a GHH oil-free two-stage air end, driven by a robust Cummins diesel engine. From manufacturing plants to environmentally sensitive locations, the CFOF1300 ensures reliable performance across a range of applications. Its portability enhances adaptability, allowing seamless integration into different workflows while maintaining stringent air quality standards.

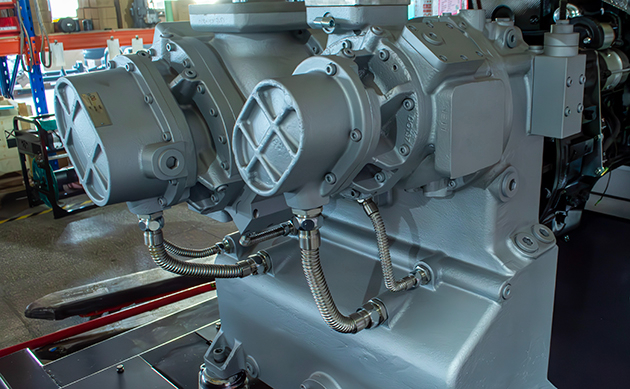

Durable Airend Design for Extended Lifespan
1)Meticulously crafted precision gears
2)Enhanced durability with oversized bearings
3)Corrosion-resistant stainless steel air seals
4)Innovative labyrinth oil seal design for superior performance
5)Stainless steel second-stage rotors for increased longevity
6)Critical components feature a combination of stainless steel, aluminum, and treated piping for enhanced resilience
Inspection and Maintenance Provisions
• Fluid drains are fitted with valves and piped to the outside of the unit.
• Selected models have external air-oil separator elements.
• Dual element air filters prevent dust ingress during replacement.
• Side hinged doors open out wide to 180 degrees.
• Top hinged doors with gas struts open up high for ample headroom.
• Side-by-side radiator and oil cooler are easier to clean.
• Safety guard fitted around engine cooling fan and V-belts.
Noise Control
• Inherently quieter design due to low engine and air end speed.
• Steel body panels equipped with sound-absorbing material.
• Utilizes computer-assisted analysis for sound path and attenuation design.
Environmental Protection
• Minimal fuel consumption effectively reduces carbon footprint.
• Low exhaust emissions mitigate atmospheric impact.
• Reduced noise levels safeguard ambient conditions and preserve workers' hearing.
Diesel Engine feature
1）Each compressor model is equipped with a diesel engine selected to maximize performance and reliability while minimizing fuel consumption.
2）It achieves industry-leading standards in fuel efficiency, exhaust emissions, and noise levels. Additionally, an automatic fuel priming and air bleed system eliminates the need to manually open injector lines in case of fuel depletion.
3）Additionally, it incorporates a two-stage fuel filtration system comprising a water sedimenter and a high-capacity pleated filter element.

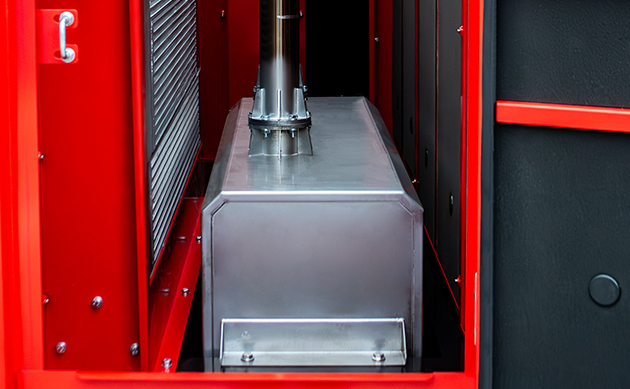

Air-Oil Separator Tank and Safety Valve
• registered pressure vessel design with manufacturer’s data report supplied.
• Non-adjustable, sealed and stamped safety valve.
Air Compressor application:
1300CFM diesel compressor is a common air compression equipment that is widely used in many industries and occasions.
Food & Beverage Shops: In small-scale food and beverage shops, it can power appliances like refrigerators, freezers, and cooking equipment, supporting the preparation and preservation of food items for sale.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
