The latest CFAIR 140 CFM trailer mounted portable air compressor incorporate the latest technology and manufacturing processes to offer users a portable supply of economic and reliable compressed air.
CF140MI-15 trailer mounted compressor has been designed to enhance safety in workplaces with safety a key consideration in its design, with a user-friendly control panel and easy maintenance with a simple service doors. Powered by a ISUZU diesel engine, it is sure to give you enough air power to finish even the toughest of jobs.
Model: CF140MI-15
Pull behind trailer mounted compressor
Air delivery: 3.9 m³/min | 140 CFM
Pressure: 15 Bar | 217.5 PSI

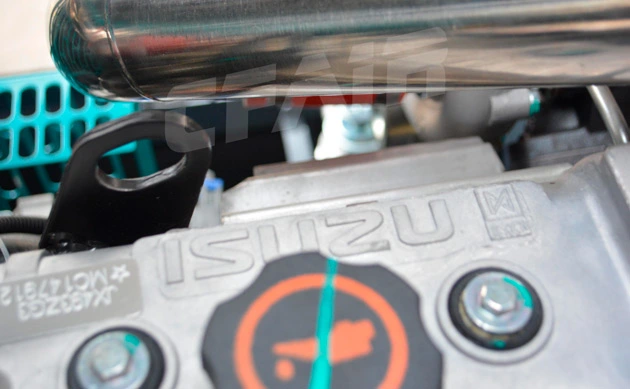

Compressor diesel engine: ISUZU
1. The spacious maintenance door makes it easy to maintain the air filter, oil filter, fuel tank, battery and oil cooler, which reduces downtime.

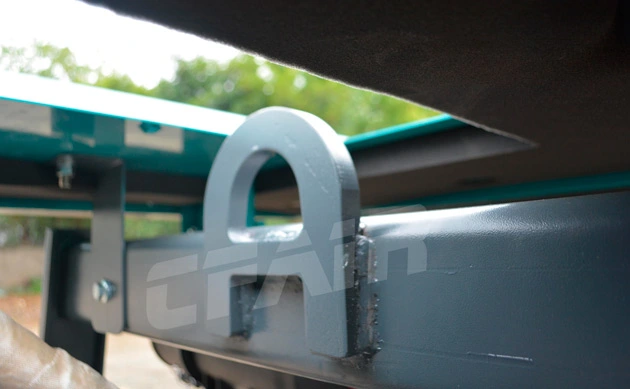

2. The air compressor trailer mounted, a type of small diesel powered air compressor, is easy to move and can still move flexibly under harsh terrain conditions. Each trailer mounted portable air compressor is equipped with lifting rings for safe and convenient hoisting and transportation.
Famous Air End –-At the heart of the trailer mounted compressors is a GHH air end, continuing the tradition of reliable durability.
Inspection and Maintenance Provisions
• Fluid drains are fitted with valves and piped to the outside of the unit.
• Selected models have external air-oil separator elements.
• Dual element air filters prevent dust ingress during replacement.
• Side hinged doors open out wide to 180 degrees.
• Top hinged doors with gas struts open up high for ample headroom.
• Side-by-side radiator and oil cooler are easier to clean.
• Safety guard fitted around engine cooling fan and V-belts.
Noise Control
• Super silent full load noise levels from as low as 64 dB(A) at 7 m.
• Low engine and air end speed design is intrinsically quieter.
• Steel body panels lined with sound absorbent material.
• Computer aided sound path analysis and attenuation design.
Environmental Protection
• Low fuel consumption ensures a reduced carbon footprint.
• Low exhaust emissions cause minimal harm to the atmosphere.
• Low noise levels protect ambient conditions and workers’ hearing.
• Almost 100% recyclable at end of service life to save the earth’s precious resources.
Diesel Engine:
• The selection of engine match for each trailer mounted compressor model is meticulously done to ensure optimum performance and reliability while keeping fuel consumption to a minimum.
• Our engines boast low fuel consumption and excel in both exhaust and noise emission levels, positioning them as leaders in their class.
• Our engines feature a two-stage fuel filtration system, incorporating a water sedimenter and a high-capacity pleated filter element.
| MODEL | CF140MI-15 | |
| Air End Type | Rotary Twin Screw, Single stage | |

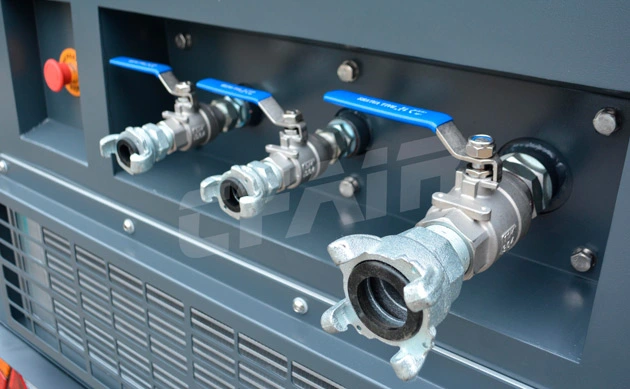

| Air Outlets | 3/4'' x 2 | |
| Free Air Delivery | CFM (mm³/min) | 140 (3.9) |
| Working Pressure | bar (psi) | 15 (217.5) |
| Engine Model | ISUZU | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 4 cylinder, Direct-injection, Turbocharged | |
| Displacement | L | 2.771 |
| L X W X H | mm | 3630*1700*1770 |
| Weight | kg | 1380 |
Note: Please feel free to contact us if any more customized requirements!
The 140 CFM towable trailer mounted compressors are easy to operate. The air compressors trailer mounted offered by CFAIR, one of the top diesel air compressor suppliers in the market, are suitable for many applications, supplying air to demolition hammers, chippers, abrasive blasting and ideal for supplying temporary air for industry.
The 140 CFM air compressor is an essential tool for anyone needing reliable air power on the go. With its trailer mounted compressor design, you can easily move it to different job sites, maximizing efficiency and convenience. Invest in our air compressor trailer mounted unit today and experience the superior performance and reliability that only a high-quality compressor can provide.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
