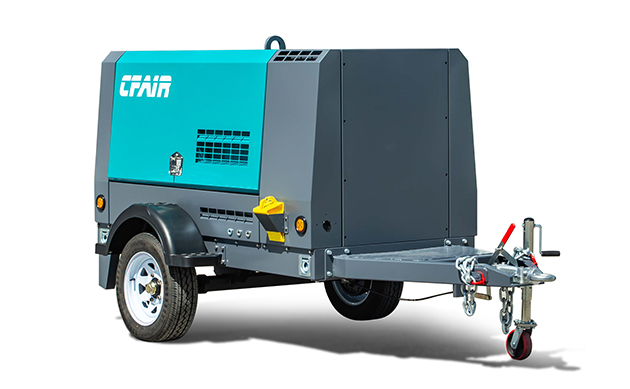

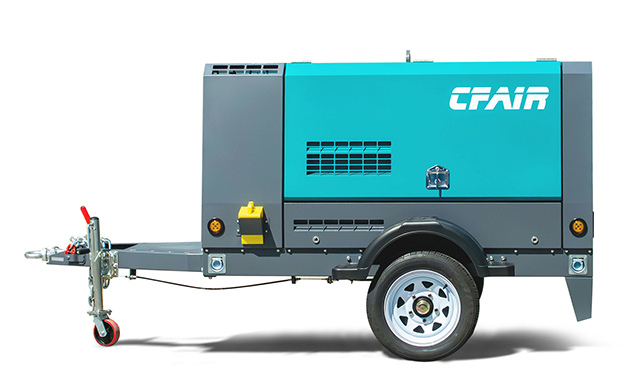

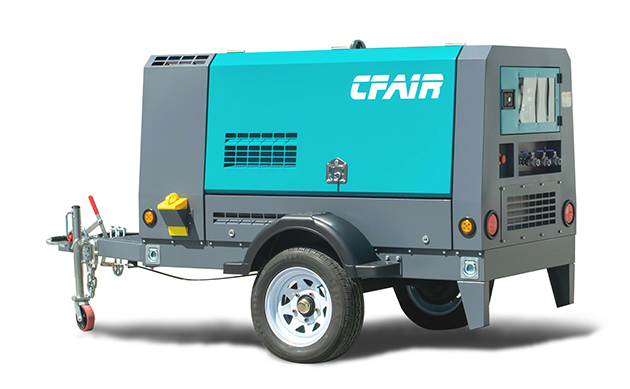

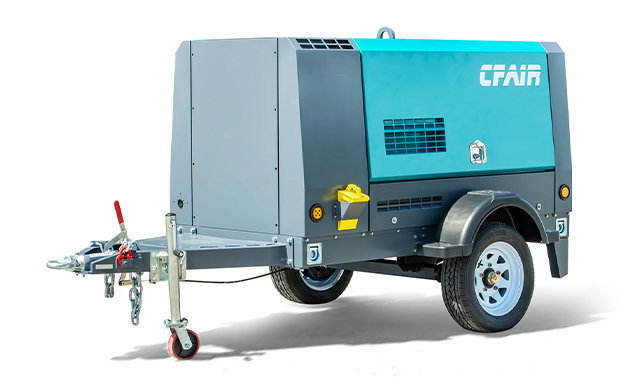

The CFAIR 50 cfm diesel compressor stands as a versatile and sturdy industrial air compressor crafted for diverse applications. Engineered with portability in mind, it offers mobility and adaptability, facilitating easy relocation between job sites to cater to varied compressed air requirements across projects.
Driven by a dependable RATO engine, this compressor guarantees efficient and reliable performance, even in challenging operational environments. Renowned for its durability, fuel efficiency, and simple maintenance, the RATO engine emerges as a trusted option for powering industrial machinery.
Control System
• Integrated starting unloader control for initial engine warm-up.
• Automatic zero to 100% capacity control by means of engine speed regulation and compressor inlet valve modulation.
• Shutdown protection for critical parameters including engine oil pressure, engine coolant temperature and compressor discharge air temperature.
• Warning protection for non-critical parameters including battery voltage and fuel level.
• Additional shutdown and warning features depending on model.
Operator Interface
• Removable starter key to prevent unauthorised operation.
• Comprehensive analogue and digital instruments supplemented by status and warning lights.
• Operator controls and instruments all grouped together ergonomically on one panel.
• Control panel located at the rear of the compressor for operator protection from passing traffic.
• Discharge air outlet valves located adjacent to the control panel for visual confirmation of air line status.

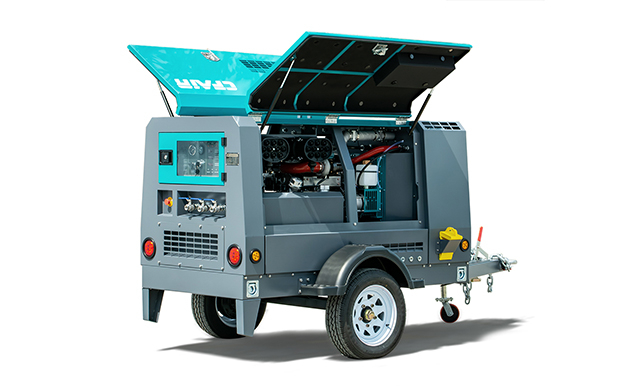

Inspection and Maintenance Provisions
• Fluid drains are fitted with valves and piped to the outside of the unit.
• Selected models have external air-oil separator elements.
• Dual element air filters prevent dust ingress during replacement.
• Side hinged doors open out wide to 180 degrees.
• Top hinged doors with gas struts open up high for ample headroom.
• Side-by-side radiator and oil cooler are easier to clean.
• Safety guard fitted around engine cooling fan and V-belts.
Air End
• Oil-injected, rotary screw air end featuring a unique asymmetric rotor profile.
• Designed and manufactured in-house using the most advanced computer- aided artificial intelligence and robotic technology.
• High efficiency, low speed, oversized air end reduces fuel consumption, noise and wear.
Environmental Protection
• Low fuel consumption ensures a reduced carbon footprint.
• Low exhaust emissions cause minimal harm to the atmosphere.
• Low noise levels protect ambient conditions and workers’ hearing.
• Almost 100% recyclable at end of service life to save the earth’s precious resources.
Diesel Engine
• The engine match selection for each compressor model is based on
achieving optimum performance and reliability with the lowest possible fuel consumption.
• Only premium quality engines are used including Kubota, Yanmar and Caterpillar. All are backed up by their own worldwide parts and service networks.
• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.
Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the compressor runs out of fuel.
• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.
Air-Oil Separator Tank and Safety Valve
• registered pressure vessel design with manufacturer’s data report supplied.
• Non-adjustable, sealed and stamped safety valve.
The 50 CFM diesel air compressor has uses that are many companies that are very different. Here are some common applications:
Building and Construction Sites: Air compressors are commonly used to power building and construction sites, such as to provide air power to pneumatic tools such as air nailers, air drills, etc., as well as for cleaning and spraying jobs.
Mining and Exploration: In the mining and exploration fields, air compressors are used to provide pneumatically driven equipment such as drilling machines, blasting equipment and pneumatic conveying systems.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
