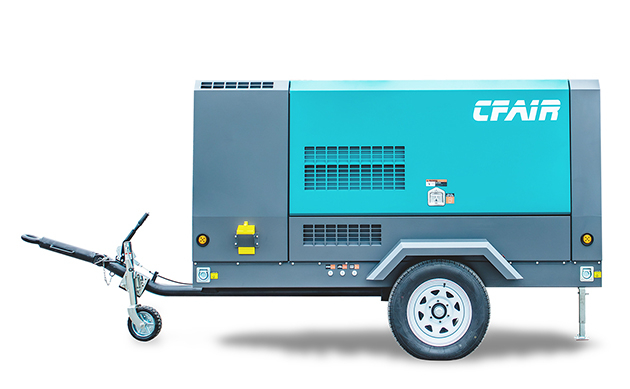

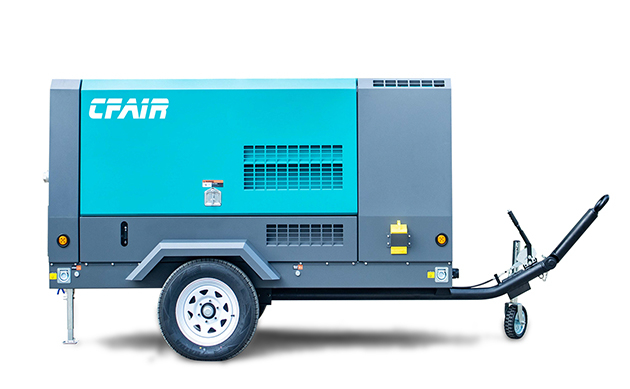

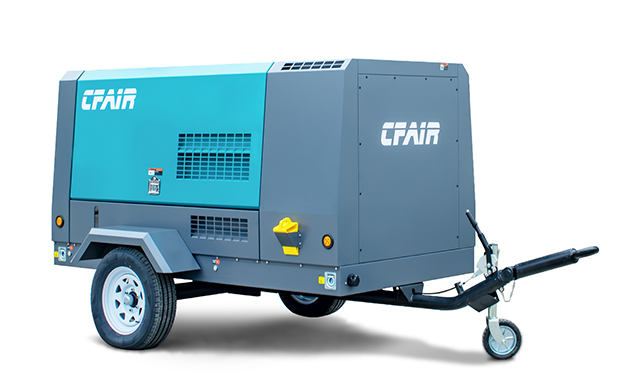

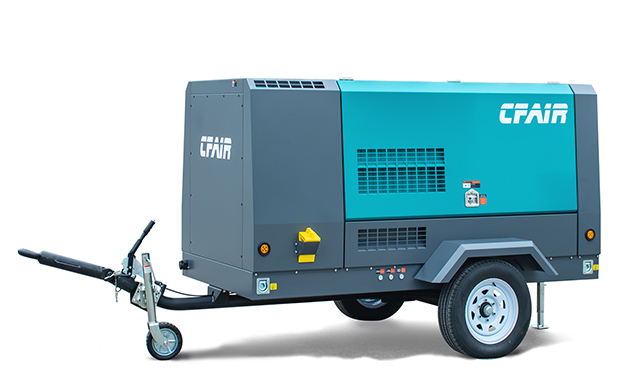

535cfm Portable Diesel Air Compressor With After Cooler

Many air compressors feature a factory-fitted, integrated aftercooler with a water coalescer, effectively removing up to 70% of humidity from compressed air. This reduces the discharge air temperature to approximately 20°C above ambient levels. Aftercoolers ensure no loss of air pressure and do not increase energy costs. They are particularly recommended for abrasive blasting, protective coating, and pneumatic tool applications. Depending on specific needs, additional aftercoolers may be required for optimal performance.

Standard features of CF460M-10.5 diesel air compressors include the power saving GHH technology airend and a heavy-duty CUMMINS diesel engine. The one piece canopy allows quick access to all service points. Torsion bar suspension system, oversized tires, and a lightweight, compact design.


Features of 535cfm Portable Diesel Air Compressor With After Cooler

1)High-performance power: With its advanced technology and robust construction, this Cummins engine delivers exceptional power and reliability even in the harshest environments.

2) State-of-the-art Screw Element:

- Utilizes authentic GHH air end

- Advanced SAP profile design

- Constructed with specialty steel sourced from America for the rotors

- Equipped with premium element bearings from SKF in Sweden.

3)Excellent Accessibility Optimum Serviceability:

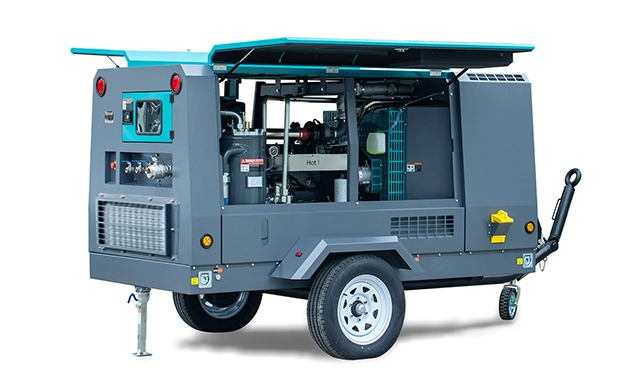

Large enclosure doors provide excellent component accessibility for unrivalled ease of maintenance. Service and maintenance work can therefore be performed quickly and efficiently, which means maximum efficiency and compressed air availability;

4)Protective Air Filtration:

Generously sized of heavy-duty intake filters protect motor and air end working condition from serious dust environment, and with maintenance indicators extend engine and compressorlife.Optimised design and separate air filters considerably enhance reliability and service life. The filters can be changed onsite quickly and simply as required.

5)Advanced fuel injection technology: Equipped with advanced fuel injection technology, this engine delivers precise and efficient fuel delivery, which translates into better performance and fuel efficiency.

6) Optimized Cooling System

(1) Large-diameter and low speed fan enhances large air flow, lownoise and good cooling performance.

(2) Efficient cooling system is designed to be used in ambient temperature up to 52`C.Non-welded connection of oil cooler andengine radiator protects thermal stress damage and extends service life greatly. Surplus heat is 30% and cooling temperature difference is 8'C roughiy. Superiorty heat exchanging efficiency.


Diesel Engine

• The engine match selection for each compressor model is based on

achieving optimum performance and reliability with the lowest possible fuel consumption.

• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.

Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the compressor runs out of fuel.

• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.


Air-Oil Separator Tank and Safety Valve

• registered pressure vessel design with manufacturer’s data report supplied.

• Non-adjustable, sealed and stamped safety valve.


Application of 535cfm Portable Diesel Air Compressor With After Cooler

Air Compressor application:

This portable 535CFM compressor serves a variety of purposes, including sandblasting, pavement breaking, and general air tool use. Pavement breaking, often employed in demolition, construction, or maintenance projects, demands a high-pressure and high-flow air compressor to effectively drive hammers or breakers into the pavement.

Primarily utilized for sandblasting in shipyards, steel structures, and extensive renovation projects, its main objective is the removal of rust, scale, and paint. Whether engaged in sandblasting surfaces, breaking pavement, or utilizing pneumatic tools for routine tasks, the CF530MK 10.5bar Diesel Air Compressor stands out for its unparalleled performance and reliability.
