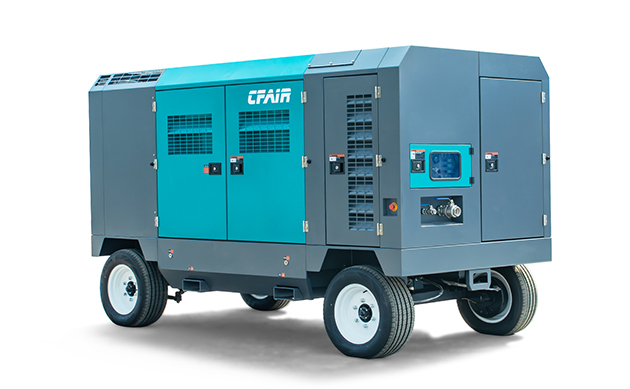

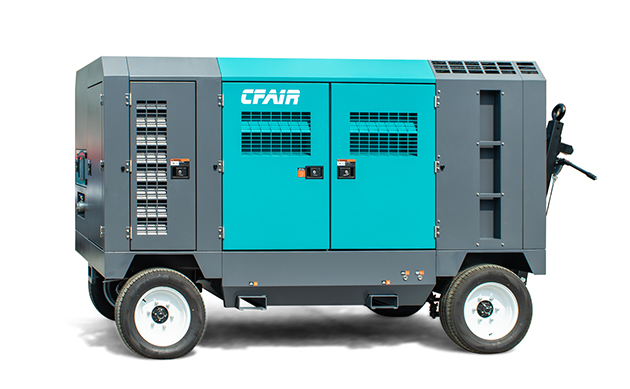

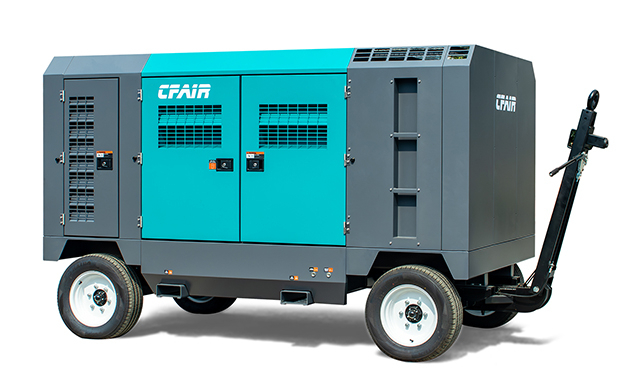

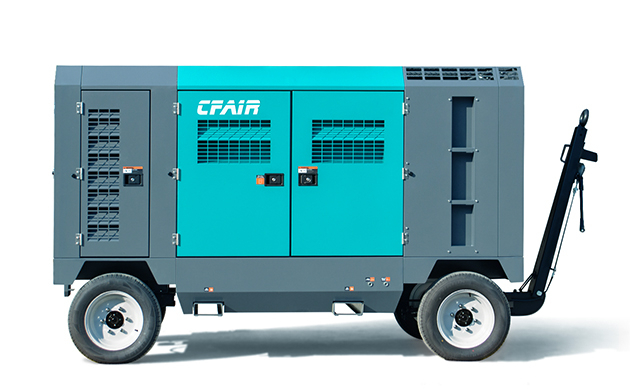

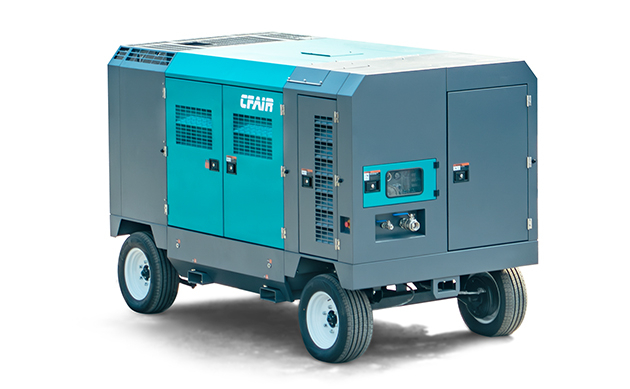

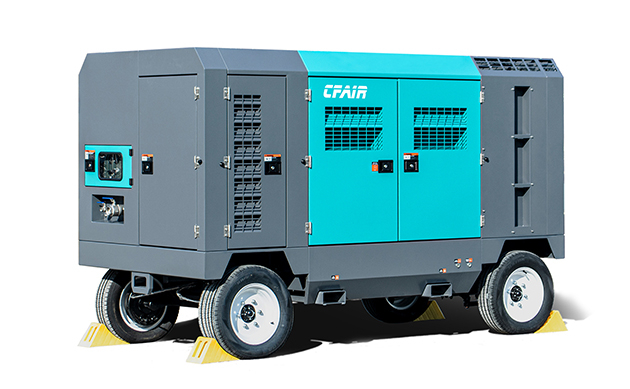

The CFAIR 550CFM 19Bar diesel air compressor represents a powerful and reliable solution for diverse industrial applications. Operating on a direct diesel engine propulsion system, this machinery effectively elevates air pressure from low to high levels through a singular compression stage. By transforming the rotary motion of the crankshaft into reciprocating linear motion via a crankshaft, piston, and connecting rod mechanism, it facilitates seamless compression operations.
Within the cylinder-piston assembly, the volume undergoes periodic fluctuations under piston action, enabling uninterrupted cycles of air suction, compression, discharge, and expansion. This yields a notable pressure escalation through a solitary compression stage.
Directly propelled by the reducer and shaft coupling, the high-pressure diesel booster compressor ensures optimal performance. Positioned on a skid-mounted base, the entire system boasts advantages including lightweight construction, heightened automation, comprehensive protective features, and commendable levels of safety and reliability.
Feature
1)High-performance power: With its advanced technology and robust construction, this Cummins engine delivers exceptional power and reliability even in the harshest environments.
2)State-of-the-art Screw Element:
- Utilizes authentic GHH air end
- Advanced SAP profile design
- Constructed with specialty steel sourced from America for the rotors
- Equipped with premium element bearings from SKF in Sweden.
3)Excellent Accessibility Optimum Serviceability:
Large enclosure doors provide excellent component accessibility for unrivalled ease of maintenance. Service and maintenance work can therefore be performed quickly and efficiently, which means maximum efficiency and compressed air availability；
4)Protective Air Filtration:
Generously sized of heavy-duty intake filters protect motor and air end working condition from serious dust environment, and with maintenance indicators extend engine and compressorlife.Optimised design and separate air filters considerably enhance reliability and service life. The filters can be changed onsite quickly and simply as required.
5)Advanced fuel injection technology: Equipped with advanced fuel injection technology, this engine delivers precise and efficient fuel delivery, which translates into better performance and fuel efficiency.
6) Low noise: Their enhanced safety features and very low noise levels make them the perfect choice for any jobsite.
7) Optimized Cooling System
(1) Large-diameter and low speed fan enhances large air flow,lownoise and good cooling performance. (2) Efficient cooling system is designed to be used in ambient temperature up to 52`C.Non-welded connection of oil cooler andengine radiator protects thermal stress damage and extends service life greatly.Surplus heat is 30% and cooling temperature difference is 8'C roughiy.Superiorty heat exchanging efficiency.
8) Alternative Colors：
Blue-Equivalent RAL5017
Green-Equivalent RAL6024
Red-Equivalent RAL3020
Orange-Equivalent RAL2009
Other color available as customer request
9) Exclusive pneumatic control system：developed by CFAIR, to adjust automatically engine rotation speed, depending on the air to be delivered.This system is highly reliable and ensures fuel consumption saving.
Diesel Engine
• The engine match selection for each compressor model is based on
achieving optimum performance and reliability with the lowest possible fuel consumption.
• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.
Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the compressor runs out of fuel.
• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.
Air Compressor application
Mining Blasting:
Utilizing controlled explosives for excavation and ore extraction in mining operations.
Water Well Drilling:The process of drilling boreholes to access underground water sources for various purposes such as irrigation, drinking water supply, and industrial use.
Pile Foundation Construction:
The establishment of structural support systems by driving large-diameter piles into the ground, providing stability and load-bearing capacity for buildings, bridges, and other structures.
Air Compressor application:
This portable 550CFM compressor serves a variety of purposes, including sandblasting, pavement breaking, and general air tool use. Pavement breaking, often employed in demolition, construction, or maintenance projects, demands a high-pressure and high-flow air compressor to effectively drive hammers or breakers into the pavement.
Primarily utilized for sandblasting in shipyards, steel structures, and extensive renovation projects, its main objective is the removal of rust, scale, and paint. Whether engaged in sandblasting surfaces, breaking pavement, or utilizing pneumatic tools for routine tasks, the CF550MK 19bar Diesel Air Compressor stands out for its unparalleled performance and reliability.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
