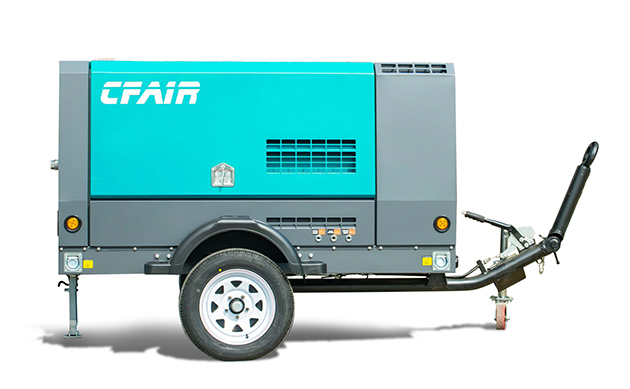

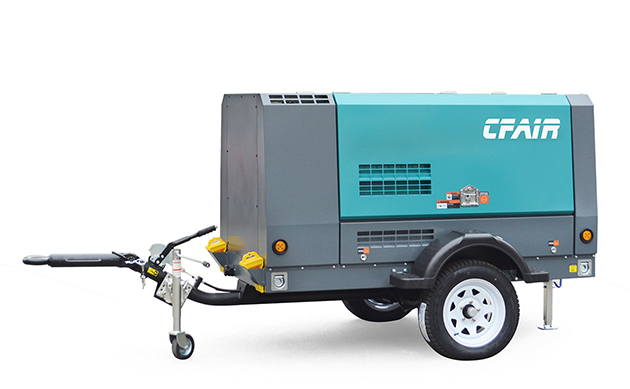

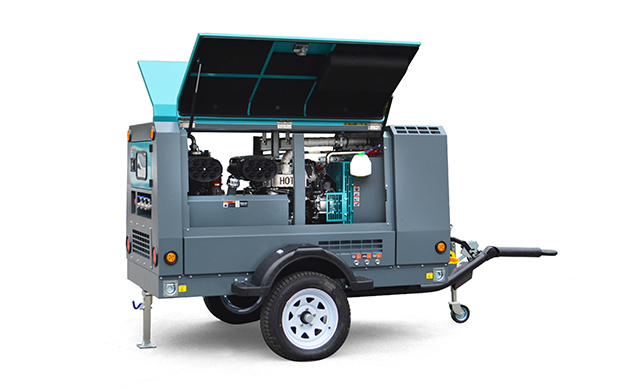

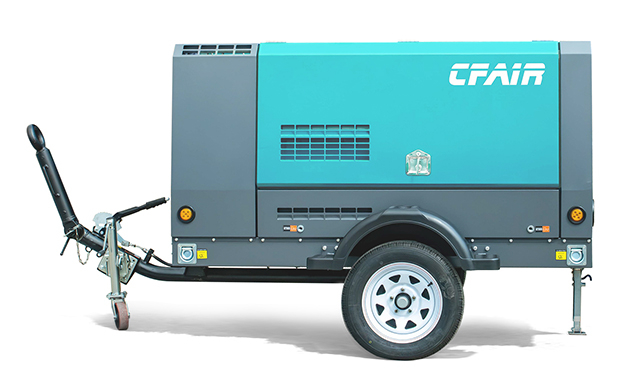

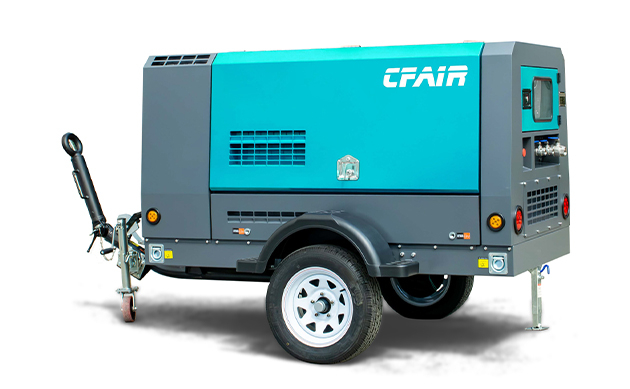

The all-steel cabinets of a portable diesel aircompressor are lockable, silenced and weatherproof. It includes the power saving GHH technology air end and a heavy-duty Yanmar diesel engine. The one piece canopy allows quick access to all service points. Torsion bar suspension system, oversized tires, and a lightweight, compact design.
Air End
• Oil-injected, rotary screw air end featuring a unique asymmetric rotor profile.
• Designed and manufactured in-house using the most advanced computer- aided artificial intelligence and robotic technology.
• High efficiency, low speed, oversized air end reduces fuel consumption, noise and wear.
Control System
• Integrated starting unloader control for initial engine warm-up.
• Automatic zero to 100% capacity control by means of engine speed regulation and compressor inlet valve modulation.
• Shutdown protection for critical parameters including engine oil pressure, engine coolant temperature and compressor discharge air temperature.
Operator Interface
• Removable starter key to prevent unauthorised operation.
• Comprehensive analogue and digital instruments supplemented by status and warning lights.
• Operator controls and instruments all grouped together ergonomically on one panel.
Inspection and Maintenance Provisions
• Fluid drains are fitted with valves and piped to the outside of the unit.
• Selected models have external air-oil separator elements.
• Dual element air filters prevent dust ingress during replacement.
• Side hinged doors open out wide to 180 degrees.
Noise Control
• Low engine and air end speed design is intrinsically quieter.
• Steel body panels lined with sound absorbent material.
• Computer aided sound path analysis and attenuation design.
Environmental Protection
• Low noise levels protect ambient conditions and workers’ hearing.
• Almost 100% recyclable at end of service life to save the earth’s precious resources.
High Power and Efficiency: This diesel engines are known for their high power output and efficiency, making them suitable for applications requiring continuous and heavy-duty operation.
Low Maintenance: Diesel engines often require less frequent maintenance compared to gasoline engines, reducing downtime and maintenance costs for the air compressor.
Versatility: Diesel-powered air compressors can operate in various environments and conditions, including remote locations or areas where electricity may not be readily available, providing versatility in usage.
Cold Weather Performance: Diesel engines perform well in cold weather conditions, making them suitable for operation in environments with low temperatures or during winter months.
Air-Oil Separator Tank and Safety Valve
• registered pressure vessel design with manufacturer’s data report supplied.
• Non-adjustable, sealed and stamped safety valve.
This compact compressor range is extremely versatile and meets the requirements of numerous applications.
75CFM air compressors are widely used in jackhammers
Automotive Repair and Maintenance: In the automotive repair and maintenance industry, air compressors are used to power a variety of pneumatic tools (such as air wrenches, air pumps, etc.) and are used in body repair, painting, and cleaning operations.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
