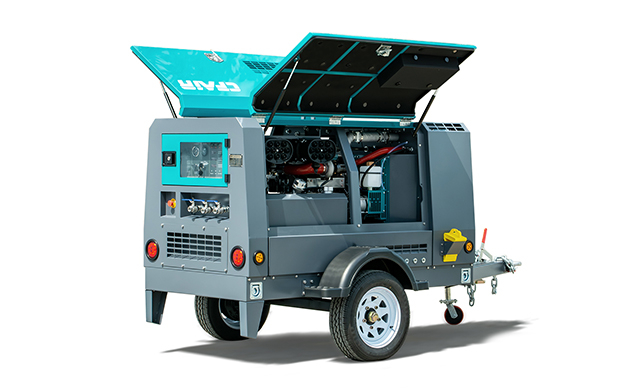

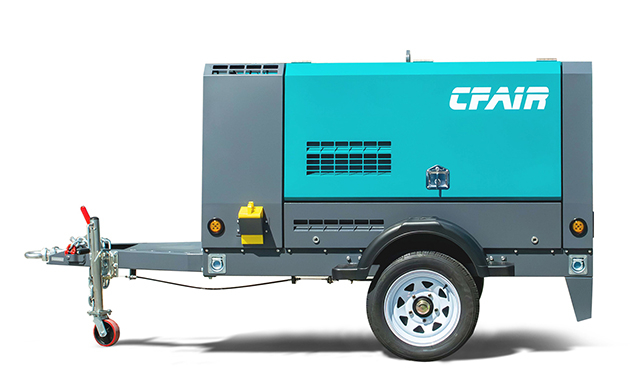

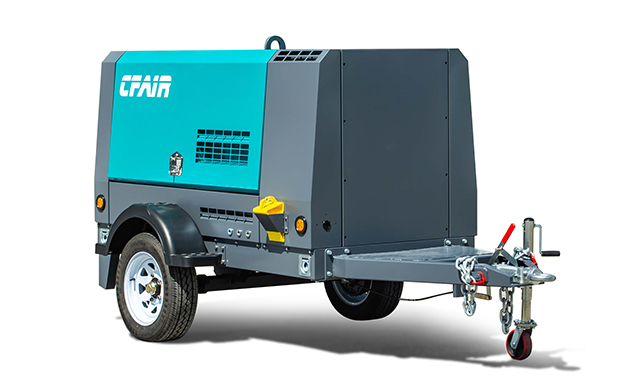

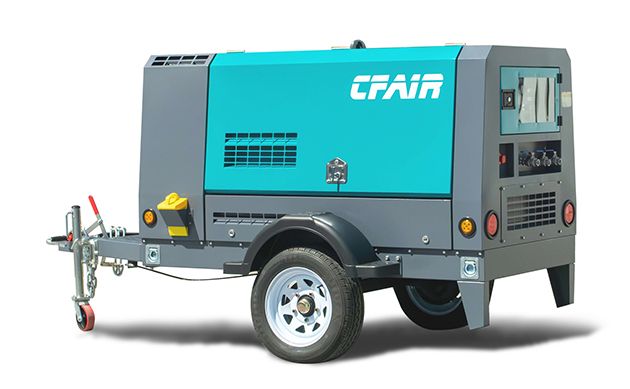

From small-scale tasks to large-scale projects, CFAIR offers a variety of portable diesel air compressors tailored to meet every need whether it's for construction, winterizing irrigation systems, utility work, or beyond. The CF75MR-7, a 5m³ portable compressor, is especially well-suited for rental applications. Its compact size makes it easy to store, transport, and maneuver on site.
Driven by a RAYWIN engine and powered by diesel, the CFAIR 75CFM portable air compressor delivers strong energy, seamlessly meeting diverse industrial requirements. With the addition of a reliable RAYWIN engine and its portable design, it cements its position as a versatile and indispensable solution for on-the-go compressed air needs across various sectors.
Reliable Air Compressors: CFAIR air compressors are crafted using cutting-edge 75CFM diesel air compressor technology, guaranteeing exceptional reliability. They reliably fulfill consumers' reliability needs. The superior construction of these air compressors guarantees prolonged service longevity, serving as an exemplary means to safeguard the interests of our valued customers.
Efficient Air Compressors: CFAIR air compressors integrate state-of-the-art technology, featuring exceptionally efficient 75 CFM diesel air compressors that satisfy customers' stringent demands for efficiency. These air compressors boast an impressive efficiency rating of up to 90 percent, effectively conserving energy and reducing operational expenses.
Operator Interface: The panel operation is straightforward and convenient, offering an intuitive and user-friendly experience.
Noise Control
• Engine and air end engineered for decreased speed, inherently reducing noise.
• Steel body panels equipped with integrated sound-absorbing materials.
• Utilization of advanced computer-assisted analysis for sound path and noise reduction design.
Inspection and Maintenance: Each machine undergoes meticulous inspection by a team of professional engineers before leaving the factory. We prioritize proven manufacturing techniques, conduct thorough loading tests prior to shipment, and provide exceptional after-sales service.
Comply with regulations: Diesel engines that meet Euro V/EPA 4F standards are the choice to comply with local regulations and standards, which is crucial to meeting environmental protection requirements and obtaining relevant licenses and certifications.
Control System
• Integrated starting unloader control to facilitate initial engine warm-up.
• Automatic control from zero to 100% capacity via engine speed regulation and modulation of compressor inlet valve.
• Shutdown protection for vital parameters such as engine oil pressure, engine coolant temperature, and compressor discharge air temperature.
High efficiency: It adopts Euro V emission standards and has advanced combustion technology and emission control systems to ensure high-efficiency operation of the engine and reduce fuel consumption and emissions.
Environmental protection and energy saving: It complies with Euro V emission standards, adopts advanced combustion control technology and energy-saving design, reduces tail gas emissions, reduces environmental pollution, and meets modern environmental protection requirements.
Diesel Engine
• The engine match selection for each compressor model is based on
achieving optimum performance and reliability with the lowest possible fuel consumption.
• Only premium quality engines are used including Kubota, Yanmar and Caterpillar. All are backed up by their own worldwide parts and service networks.
• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.
Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the compressor runs out of fuel.
• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.
Air-Oil Separator Tank and Safety Valve
• Engineered as a certified pressure vessel accompanied by a manufacturer’s data report.
• Equipped with a non-adjustable, sealed, and stamped safety valve.
Air Compressor application:
The 75CFM 7Bar box-type diesel air compressor finds application in various industries and settings:
1) Construction Sites: It powers pneumatic tools like jackhammers, drills, and nail guns, facilitating efficient construction tasks.
2) Mining Operations: Used to operate drilling equipment and pneumatic machinery in mining sites, aiding in excavation and exploration activities.
3) Agriculture: Provides compressed air for tasks such as spraying pesticides, inflating tires on farm vehicles, and operating pneumatic tools for maintenance.
4) Shipyard Maintenance: Assists in maintenance and repair tasks aboard ships, including painting, sandblasting, and operating pneumatic tools.
5) Infrastructure Maintenance: Used for tasks like road repairs, bridge construction, and maintenance of public utilities requiring compressed air.
6) Automotive Applications: Utilized in automotive repair shops for tasks such as tire inflation, operating pneumatic wrenches, and other maintenance activities.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
