Towable diesel compressor,CF120BCI-7, a diesel compressor engineered for robust performance and reliability. Engine driven by the renowned ISUZU, CF120BCI-7 delivers a displacement of 3.4 m³/min (120 CFM at a pressure of 7 Bar (101.5 PSI. This compact towable diesel compressor and ISUZU engine make it an exceptional choice for a diverse range of pneumatic applications.
Model: CF120BCI-7
Portable towable diesel compressor:Box type with aftercooler function
Air delivery: 3.4 m³/min | 120 CFM
Pressure: 7 Bar | 101.5 PSI

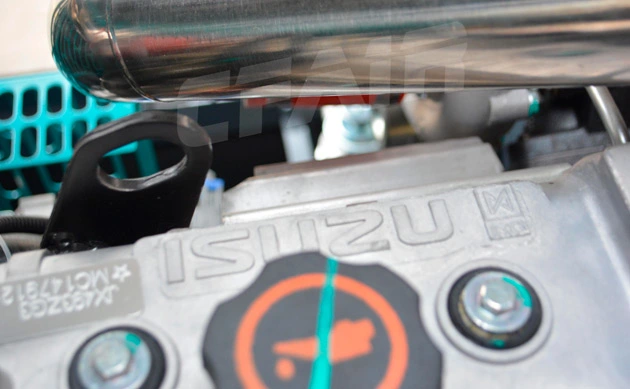

Compressor diesel engine: ISUZU
1）Reliable and high performance ISUZU engine.
2）Legendary canopy
3）Starter motor protection system
4）Spillage free frame
5） Three layer anti-corrosion paint system
6）Battery cut off switch
7) Extra protection for encased wire routings
Control System
• Integrated starting unloader control for initial engine warm-up.
Inspection and Maintenance: Every towable diesel compressor been carefully inspected by team professional engineers before leaves diesel air compressor factory. We insists on proven manufacturing techniques, complete loading tests prior shipment, and outstanding after sales service.
Diesel Engine
• The engine match selection for each towable diesel compressor model is based on achieving optimum performance and reliability with the lowest possible fuel consumption.
• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.
Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the diesel powered air compressor runs out of fuel.
• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.
| MODEL | CF120BCI-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |
| Air Outlets | 3/4'' x 2 | |
| Free Air Delivery | CFM (mm³/min) | 120 (3.4) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Discharge Air Temperature | °C | Atmospheric Temperature +20°C |
| Engine Model | ISUZU | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 4 cylinder, Direct-injection | |
| Displacement | L | 2.771 |
| L X W X H | mm | 1880*915*1220 |
| Weight | kg | 860 |
Note: Please feel free to contact us if any more customized requirements!
The truck-mounted CF120BCI-7 diesel engine driven air compressor stands as a mobile powerhouse for diverse applications. Mounted on trucks, this towable diesel compressor provides on-the-go compressed air solutions for construction sites, roadwork, and emergency repairs. This versatile unit ensures portability and efficiency in various industrial settings, enhancing operational flexibility.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
