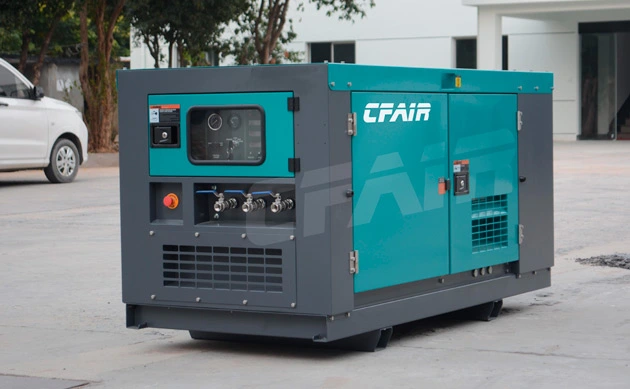

The CFAIR CF120BY-7 diesel air compressor is an exemplar of efficiency and reliability, featuring a high-performance YANMAR engine and adhering to EV/EPA 4F emission standards. This skid-mounted air compressor offers both mobility and stability, making it suitable for diverse industrial applications.
Reliable Air Compressors: CFAIR air compressors are crafted using cutting-edge 100 CFM diesel air compressor technology, guaranteeing exceptional reliability. They reliably fulfill consumers' reliability needs. The superior construction of these air compressors guarantees prolonged service longevity, serving as an exemplary means to safeguard the interests of our valued customers.
Efficient Air Compressors: CFAIR air compressors integrate state-of-the-art technology, featuring exceptionally efficient 100 CFM diesel air compressors that satisfy customers' stringent demands for efficiency. These air compressors boast an impressive efficiency rating of up to 90 percent, effectively conserving energy and reducing operational expenses.
Operator Interface: The panel operation is straightforward and convenient, offering an intuitive and user-friendly experience.
Inspection and Maintenance: Each machine undergoes meticulous inspection by a team of professional engineers before leaving the factory. We prioritize proven manufacturing techniques, conduct thorough loading tests prior to shipment, and provide exceptional after-sales service.
Noise Control
• Operates at whisper-quiet levels, with full load noise levels reaching as low as 64 dB(A) at a distance of 7 meters.
• Engine and air end engineered for decreased speed, inherently reducing noise.
• Steel body panels equipped with integrated sound-absorbing materials.
• Utilization of advanced computer-assisted analysis for sound path and noise reduction design.
Control System
• Integrated starting unloader control to facilitate initial engine warm-up.
• Automatic control from zero to 100% capacity via engine speed regulation and modulation of compressor inlet valve.
• Shutdown protection for vital parameters such as engine oil pressure, engine coolant temperature, and compressor discharge air temperature.
Comply with regulations: Diesel engines that meet Euro V/EPA 4F standards are the choice to comply with local regulations and standards, which is crucial to meeting environmental protection requirements and obtaining relevant licenses and certifications.
High efficiency: It complies with both Euro V and EPA 4F emission standards, integrating sophisticated combustion technology and emission control systems. These advancements guarantee the engine operates with high efficiency, effectively reducing both fuel consumption and emissions.
Environmental protection and energy saving: In alignment with Euro V emission standards, it integrates advanced combustion control technology and energy-saving design, resulting in reduced tailpipe emissions, mitigated environmental pollution, and fulfillment of contemporary environmental protection standards.
Diesel Engine
• Each compressor model's engine selection is meticulously calibrated to guarantee peak performance and reliability while minimizing fuel consumption.
• Key attributes include best-in-class fuel efficiency, as well as low exhaust and noise emissions.
• An automatic fuel priming and air bleeding system negates the need to open injector lines when the compressor exhausts its fuel.
• Dual-stage fuel filtration is achieved through a combination of a water sediment separator and a high-capacity pleated filter element.
| MODEL | CF120BY-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |

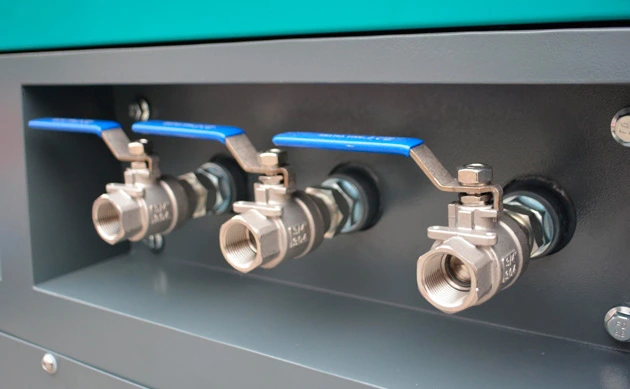

| Air Outlets | 3/4'' x 2 | |
| Free Air Delivery | CFM (mm³/min) | 120 (3.4) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Discharge Air Temperature | °C | Atmospheric Temperature +20°C |
| Engine Model | YANMAR | |
| Fuel | Diesel | |
| Emission | EU Stage V / EPA T4F | |
| Engine Type | 4 cylinder, Direct-injection | |
| Displacement | L | 2.19 |
| L X W X H | mm | 1880*915*1220 |
| Weight | kg | 860 |
Note: Please feel free to contact us if any more customized requirements!
Driving the pile driver: Air compressors provide high-pressure air to drive the pile driver, which has the advantages of high efficiency, stability, and safety, making the work process more reliable and efficient.
Cleaning the pile hole: In pile driving projects, this type of air compressor for sale diesel is necessary to clean out the debris and sediment in the pile hole to ensure the quality and stability of the pile. Air compressors can provide high-pressure airflow to clean these materials out of the pile hole.
Pneumatic drills: Pneumatic drills are drills powered by air compressors. They have the characteristics of high efficiency, stability, and safety and can be used for hole drilling and other operations in pile driving projects.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
