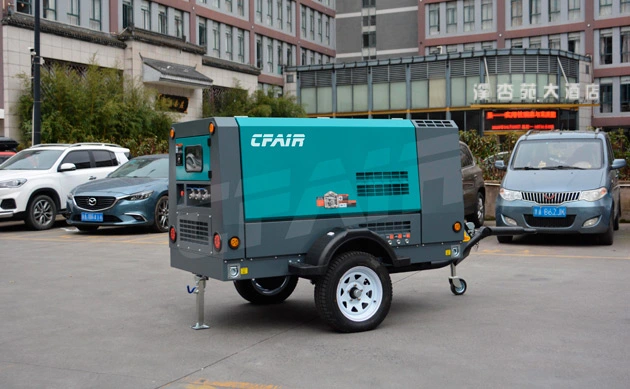

CF120MY-7 CFAIR 120CFM Mobile Diesel Engine Screw Air Compressor For Mining

Features of CF120MY-7 CFAIR 120CFM Good Quality Mobile Diesel Engine Screw Air Compressor For Mining

Control System

• Incorporates integrated starting unloader control for initiating engine warm-up.

• Achieves automatic zero to 100% capacity control through engine speed regulation and modulation of the compressor inlet valve.

• Includes shutdown protection for critical parameters such as engine oil pressure, engine coolant temperature, and compressor discharge air temperature.

• Provides warning protection for non-critical parameters like battery voltage and fuel level.

• Offers additional shutdown and warning features tailored to specific models.

Air End

• Oil-injected, rotary screw air end featuring a unique asymmetric rotor profile.

• Designed and manufactured in-house using the most advanced computer- aided artificial intelligence and robotic technology.

• High efficiency, low speed, oversized air end reduces fuel consumption, noise and wear.

Operator Interface

• Features a removable starter key to prevent unauthorized operation.

• Utilizes comprehensive analog and digital instruments complemented by status and warning lights.

• Ergonomically groups operator controls and instruments together on a single panel.

• Positions the control panel at the rear of the compressor to shield operators from passing traffic.

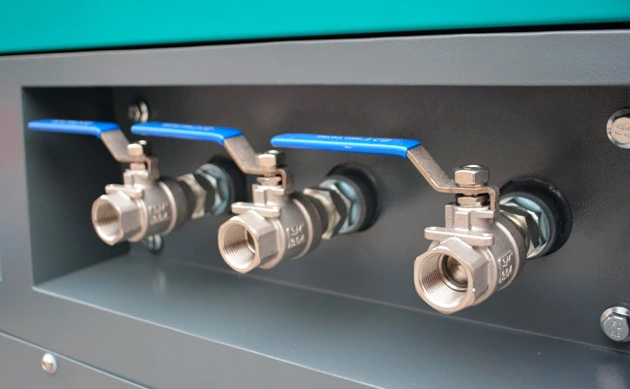

• Places discharge air outlet valves adjacent to the control panel for easy visual confirmation of air line status.

Inspection and Maintenance Provisions

• Fluid drains are fitted with valves and piped to the outside of the unit.

• Selected models have external air-oil separator elements.

• Dual element air filters prevent dust ingress during replacement.

• Side hinged doors open out wide to 180 degrees.

• Top hinged doors with gas struts open up high for ample headroom.

• Side-by-side radiator and oil cooler are easier to clean.

• Safety guard fitted around engine cooling fan and V-belts.

Noise Control

• Super silent full load noise levels from as low as 64 dB(A) at 7 m.

• Low engine and air end speed design is intrinsically quieter.

• Steel body panels lined with sound absorbent material.

• Computer aided sound path analysis and attenuation design.

Environmental Protection

• Low fuel consumption ensures a reduced carbon footprint.

• Low exhaust emissions cause minimal harm to the atmosphere.

• Low noise levels protect ambient conditions and workers’ hearing.

• Almost 100% recyclable at end of service life to save the earth’s precious resources.

Low emissions: Diesel engines that meet Euro V/EPA 4F standards have lower emission levels, including nitrogen oxides (NOx), particulate matter (PM) and other harmful substances. This helps improve air quality and reduce environmental pollution.

Comply with regulations: Diesel engines that meet Euro V/EPA 4F standards are the choice to comply with local regulations and standards, which is crucial to meeting environmental protection requirements and obtaining relevant licenses and certifications.

Long-lasting:

• Features a removable starter key to prevent unauthorized operation.

• Utilizes comprehensive analog and digital instruments complemented by status and warning lights.

• Ergonomically groups operator controls and instruments together on a single panel.

• Positions the control panel at the rear of the compressor to shield operators from passing traffic.

• Places discharge air outlet valves adjacent to the control panel for easy visual confirmation of air line status..

Diesel Engine

• The engine match selection for each compressor model is based on

achieving optimum performance and reliability with the lowest possible fuel consumption.

• Only premium quality engines are used including Kubota, Yanmar, Hino, Mitsubishi and Caterpillar. All are backed up by their own worldwide parts and service networks.

• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.

Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the compressor runs out of fuel.

• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.
