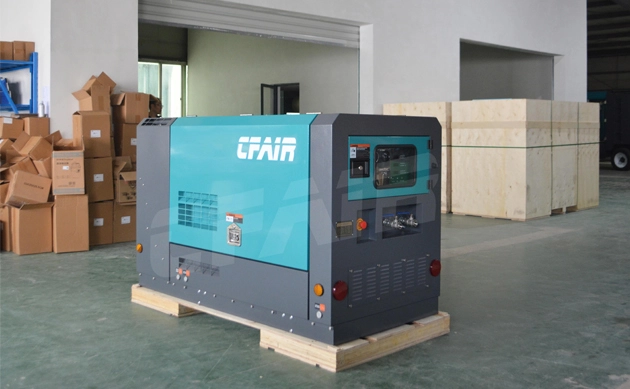

Powered by ISUZU engine, the CFAIR 130CFM at 7bar compressor will provide a reliable source of compressed air to drive various pneumatic tools, including chipping and jackhammers, nut runners, grinders and hammers.
1）Reliable and high performance ISUZU engine.
2）Modern, energy-efficient air-end.The air-end has a contemporary energy-efficient screw shape.This increases compressor efficiency andreduces maintenance and replacementcosts.
3）Through intelligent design of all key components, internal pressure losses are kept to a minimum, resulting innoticeable savings in total energy consumption.
4）Using of an effective oil separation system.
5）All filters and separators are easy to reach for economical service.

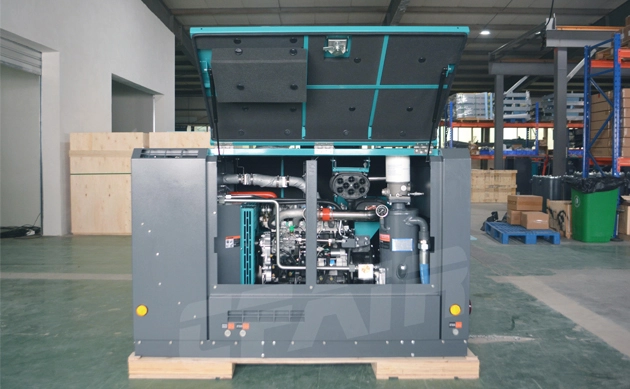

6) 2-position gas springs allow the canopy to open to one position for routine checks, inspection, and service, and a full-open position for access to all components for more involved service and maintenance.
7) Control System: Integrated starting unloader control for initial engine warm-up.
8) Inspection and Maintenance: Every machine has been carefully inspected by team professional engineers before leaves diesel air compressor factory. We insists on proven manufacturing techniques, complete loading tests prior shipment, and outstanding after sales service.
Diesel Engine
• The engine match selection for each compressor model is based on achieving optimum performance and reliability with the lowest possible fuel consumption.
• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.
Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the compressor runs out of fuel.
• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.
| MODEL | CF130BI-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |
| Air Outlets | 3/4'' x 2 | |
| Free Air Delivery | CFM (mm³/min) | 130 (3.7) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Engine Model | ISUZU | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 4 cylinder, Direct-injection | |
| Displacement | L | 2.771 |
| L X W X H | mm | 1880*915*1220 |
| Weight | kg | 860 |
Note: Please feel free to contact us if any more customized requirements !
CFAIR 130cfm box type air compressor can be used in Construction Sites. Powering pneumatic tools such as jackhammers, nail guns, and drills, and assisting in concrete pouring and spraying processes. In addition, mining operations are also available for this CFAIR air compressor for mining. Providing compressed air for drilling and excavation equipment, and supporting ventilation systems in underground mines. As for manufacturing and Industrial Facilities, diesel powered air compressor can be operating air-powered machinery and production lines.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
