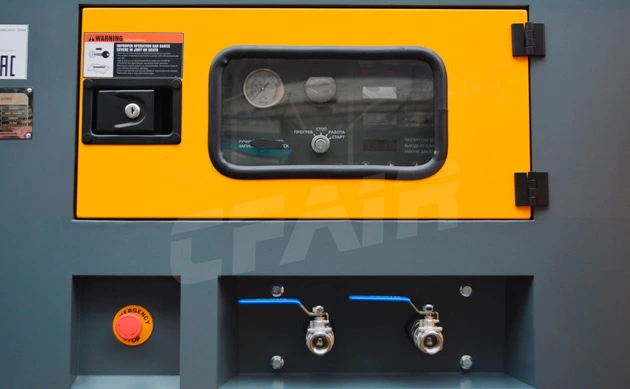

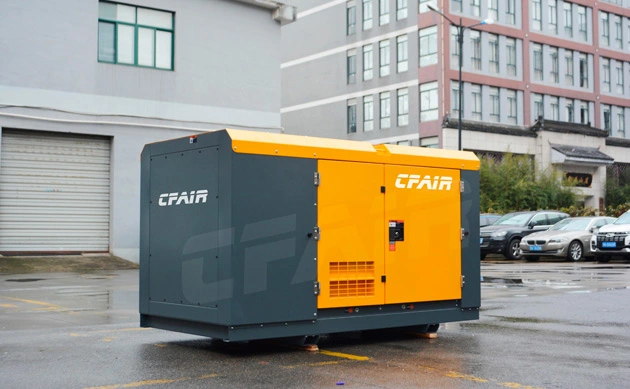

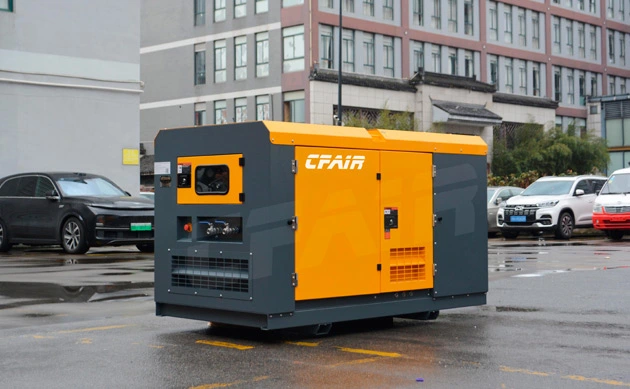

CF140BI-15 is right product that can satisfy every customer's needs. CFAIR is one of the most rliable factory of diesel-powered air compressors in the market nowadays. The CFAIR CF140BI-15 is a heavy duty high pressure (15 bar) box-type air compressor has been designed to enhance safety in workplaces with safety a key consideration in its design, with a user-friendly control panel and easy maintenance with a simple service doors. Powered by a ISUZU diesel engine, it is sure to give you enough air power to finish even the toughest of jobs.
Model: CF140BI-15
Portable diesel compressor: Box type
Air delivery: 3.9 m³/min | 140 CFM
Pressure: 15 Bar | 217.5 PSI
Compressor diesel engine: ISUZU
1）Compact Design: The compact box-type design guarantees convenient transportation and maneuverability, enabling quick deployment to a multitude of job sites.
2）Diesel-Powered: Equipped with a diesel engine, it provides a robust and efficient power source, ideal for remote locations or areas where electricity may not be readily available.
3）Starter motor protection system
4）Anti-airlock system
5）110% spillage-free frame：No matter the circumstances, your compressor can contain 110% of all fluids used in the process. As a consequence, there is no risk to pollute the environment with any liquid spills. Maintenance is efficient thanks to central drains
6）anti-corrosion frame

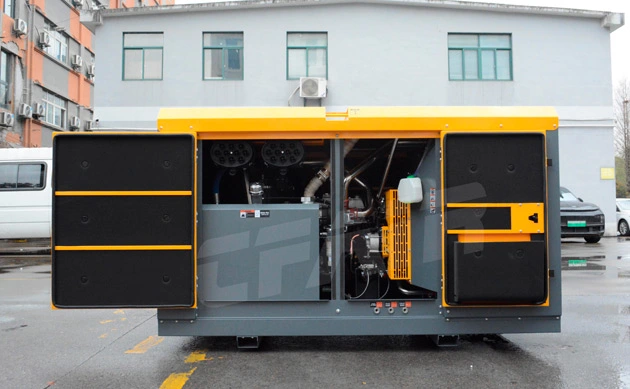

7）Spin-on filters: Service can be completed in under an hour without the need for special tools thanks to spin on filters

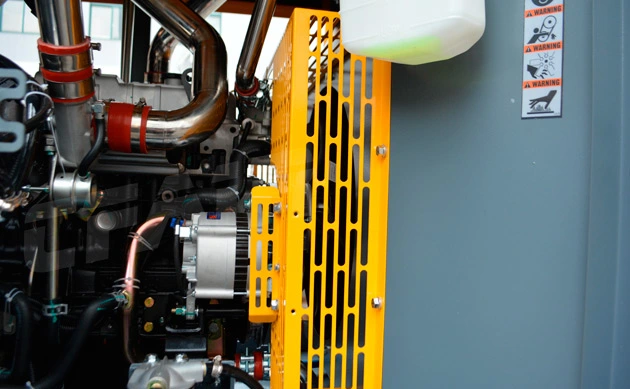

Diesel Engine
• The engine match selection for each compressor model is based on
achieving optimum performance and reliability with the lowest possible fuel consumption.
• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.
| MODEL | CF140BI-15 | |
| Air End Type | Rotary Twin Screw, Single stage | |
| Air Outlets | 3/4'' x 2 | |
| Free Air Delivery | CFM (mm³/min) | 140 (3.9) |
| Working Pressure | bar (psi) | 15 (217.5) |
| Engine Model | ISUZU | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 4 cylinder, Direct-injection, Turbocharged | |
| Displacement | L | 2.771 |
| L X W X H | mm | 2280*1125*1260 |
| Weight | kg | 1100 |
Note: Please feel free to contact us if any more customized requirements!
CF140BI-15 box type portable diesel compressor is easy to operate. They are suitable for many applications, supplying air to demolition hammers, chippers, abrasive blasting and ideal for supplying temporary air for various industry.
