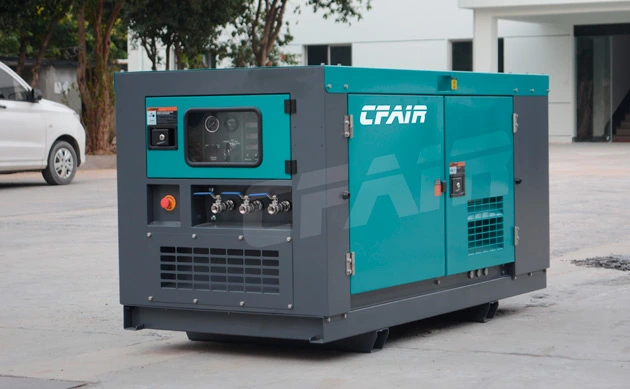

The CFAIR CF140BY-7 diesel air compressor for drilling rig exemplifies excellence with a YANMAR engine and EV/EPA 4F emission compliance. This box-type rig air compressor combines power and environmental responsibility, catering to diverse industrial needs.
1）Compact Design: Its box-type design ensures easy transportation and maneuverability, allowing it to be deployed swiftly to various job sites.
2）Diesel-Powered: Equipped with a diesel engine, it provides a robust and efficient power source, ideal for remote locations or areas where electricity may not be readily available.
3）Durable Construction: Built to withstand harsh working conditions, the compressor features rugged construction and high-quality materials, ensuring durability and longevity.
4）Low Maintenance: Designed for minimal maintenance requirements, it helps reduce downtime and ensures maximum productivity on the job site.
Diesel Engine
• The engine match selection for each compressor model is based on
achieving optimum performance and reliability with the lowest possible fuel consumption.
• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.
Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the compressor runs out of fuel.
• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.
| MODEL | CF140BY-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |

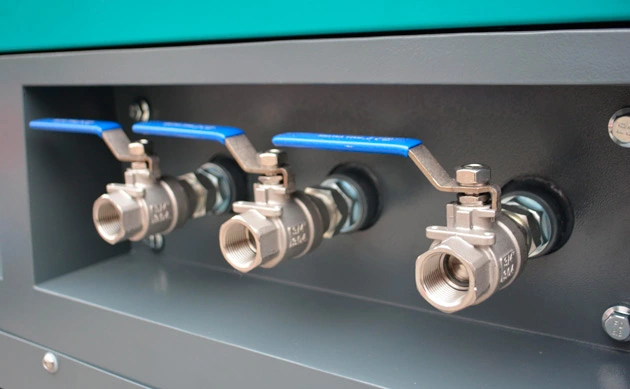

| Air Outlets | 3/4'' x 2 | |
| Free Air Delivery | CFM (mm³/min) | 140 (3.9) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Engine Model | YANMAR | |
| Fuel | Diesel | |
| Emission | EU Stage V / EPA T4F | |
| Engine Type | 4 cylinder, Direct-injection | |
| Displacement | L | 2.19 |
| L X W X H | mm | 1880*915*1220 |
| Weight | kg | 860 |
Note: Please feel free to contact us if any more customized requirements!
The 140cfm 7bar CFAIR diesel box type drill rig compressors for sale is a versatile and efficient device that can meet the demands of different applications with its high performance and durability. Some of the applications of this air compressor for sale diesel are:
Roadworks: The rig compressor can be used to power pneumatic tools such as jackhammers, breakers, drills, etc. for road construction and maintenance.
Light demolition: The air compressor for drilling rig can be used to demolish concrete structures, walls, floors, etc. with ease and speed.
Construction tools: The rig air compressor can be used to operate nail guns, staplers, sanders, spray guns, etc. for various carpentry and painting tasks.
Sandblasting: This diesel engine driven air compressor can be used to clean and prepare surfaces such as metal, wood, stone, etc. for painting or coating by blasting them with abrasive materials.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
