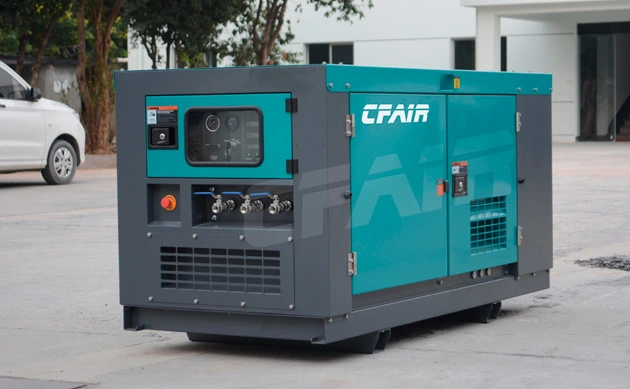

The CF175BY-7 diesel air compressor by CFAIR is a robust solution with a YANMAR engine and EV/EPA 4F emission compliance. This box-type air compressor exemplifies excellence, providing a powerful and environmentally responsible solution for diverse industrial applications.
Power and Performance:
1)The compressor is typically powered by a diesel engine, providing reliable and efficient operation.
2)It can deliver a compressed air flow rate of 175 CFM, which is suitable for a range of tasks.
Portability:
1)These compressors are designed to be easily transported and moved around job sites.
2)They may come with towable or truck-mounted options, allowing for convenient transportation.
Noise Reduction: Certain models may incorporate sound attenuation technology, such as QuieTech, to minimize noise levels during operation.
Air end
• Large rotors, low rpm, long life span
• High efficiency, low noise,low vibration,high reliability
• Bearing life over 100,000 hours
• Little leakage triangle,low power/airflow ratio
• Less wearing parts,low maintenance cost
Noise Control
• Super silent full load noise levels from as low as 64 dB(A) at 7 m.
• Low engine and air end speed design is intrinsically quieter.
• Steel body panels lined with sound absorbent material.
• Computer aided sound path analysis and attenuation design.
Environmental Protection
• Low fuel consumption ensures a reduced carbon footprint.
• Low exhaust emissions cause minimal harm to the atmosphere.
• Low noise levels protect ambient conditions and workers’ hearing.
• Almost 100% recyclable at end of service life to save the earth’s precious resources.

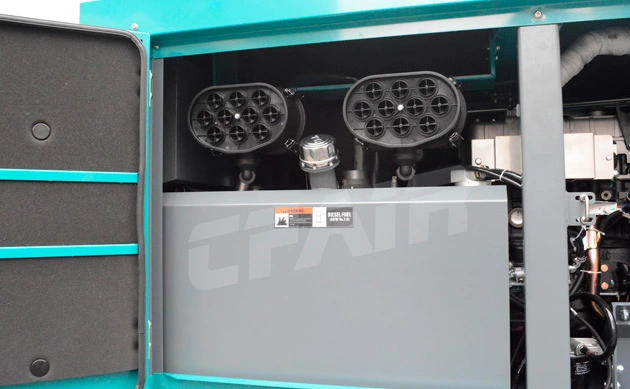

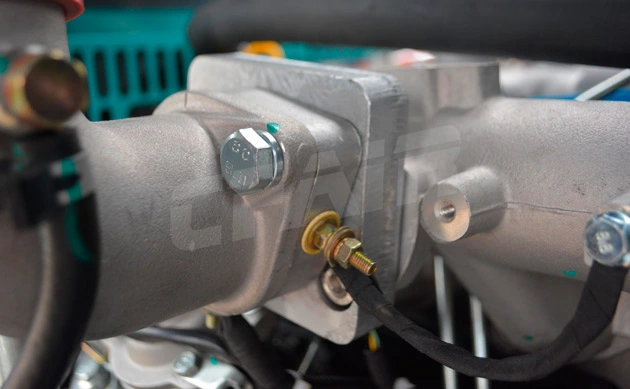

Diesel Engine
• The engine match selection for each compressor model is based on
achieving optimum performance and reliability with the lowest possible fuel consumption.
• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.
Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the compressor runs out of fuel.
• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.
| MODEL | CF175BY-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |

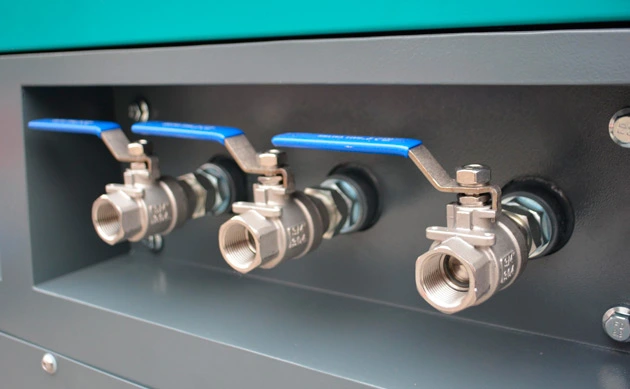

| Air Outlets | 3/4'' x 3 | |
| Free Air Delivery | CFM (mm³/min) | 175 (4.9) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Engine Model | YANMAR | |
| Fuel | Diesel | |
| Emission | EU Stage V / EPA T4F | |
| Engine Type | 4 cylinder, Direct-injection | |
| Displacement | L | 2.19 |
| L X W X H | mm | 2100*980*1100 |
| Weight | kg | 930 |
Note: Please feel free to contact us if any more customized requirements!
The CFAIR diesel box-type air compressor, featuring a robust YANMAR engine and delivering 175 CFM at 7-bar, exhibits versatility across a range of industrial applications. Housed in its durable box structure, it excels in construction sites, powering pneumatic tools for drilling and fastening with notable efficiency. In manufacturing processes, this air compressor for sale diesel proves instrumental in supporting various pneumatic applications, enhancing operational effectiveness. The YANMAR engine's reliability ensures performance resilience in challenging environments. Whether utilized in remote locations, automotive maintenance, or emergency response scenarios, this compressor stands out as a flexible and powerful solution. Its robust design and mobility make it an indispensable tool, guaranteeing a consistent and potent supply of compressed air for diverse industrial requirements.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
