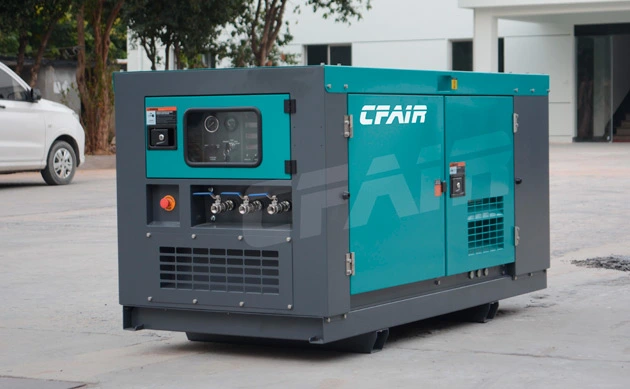

The CF185BY-7 diesel air compressor by CFAIR is a cutting-edge solution featuring a YANMAR engine and adhering to EV/EPA 4F emission standards. As a box-type air compressor, it combines robust performance with environmental responsibility.
Reliable and efficient Air End: Famous German technology machine air head.The excellent air compressor head design is highly reliable and can maintain stable performance over long periods of operation, reducing downtime and production interruptions.
Cooler: Using high quality aluminum material, alternating expression coolerfins, ensure the perfect radiating effect
Oil Filter: Famous filters ensure longer working lifeand save the maintenance time and cost.

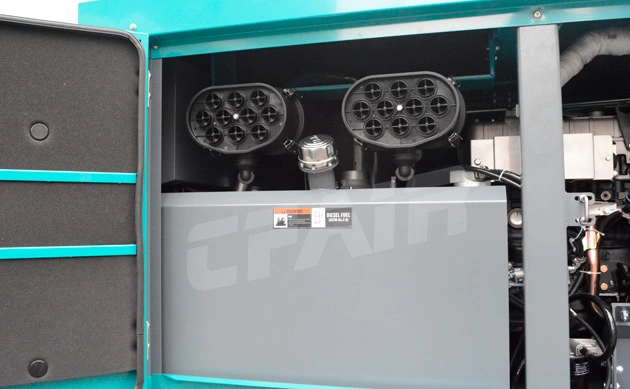

Air Filter: Two-stage dust removal andfiltering system witheffciency of up to 99 9% evenin heavy-duty environment.
Precision control: Advanced air compressor heads may be equipped with precision control systems, which can achieve precise monitoring and adjustment of pressure, temperature and other parameters to ensure the stability and controllability of the production process.
Easy Maneuverability: The compressors are designed with a compact form factor to enhance maneuverability, whether on the job site or when being transported behind a truck.
An Easy Controller: Our controller, which is on the curbside to help keep the operator safe, quickly and easily understand the status of your compressor.
compressor, day in and day out.
1)High efficiency: YANMAR diesel engine uses supercharging technology to improve combustion efficiency by compressing air, thereby providing higher power output and better fuel economy.
2)Reliability: YANMAR is a reputable engine manufacturer whose engines are known for their exceptional reliability. Supercharged diesel engines are engineered and tested for exceptional durability and stability, delivering reliable performance in a variety of operating conditions.
3)Energy Saving and Environmental Protection: Supercharged diesel engines generally provide higher combustion efficiency, thereby reducing fuel consumption and emissions. This helps reduce operating costs and comply with modern environmental standards and regulations.
4)Power output: Supercharging technology can improve the power output of diesel engines, allowing them to maintain high torque output under high loads and low speeds, making it suitable for various industrial and commercial applications.
| MODEL | CF185BY-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |

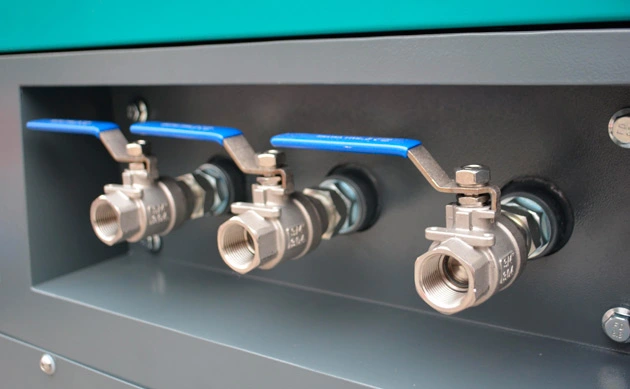

| Air Outlets | 3/4'' x 3 | |
| Free Air Delivery | CFM (mm³/min) | 185 (5.2) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Engine Model | YANMAR | |
| Fuel | Diesel | |
| Emission | EU Stage V / EPA T4F | |
| Engine Type | 4 cylinder, Direct-injection | |
| Displacement | L | 2.19 |
| L X W X H | mm | 2100*980*1100 |
| Weight | kg | 930 |
Note: Please feel free to contact us if any more customized requirements!
The CFAIR diesel box-type air compressor, featuring a robust YANMAR engine and delivering 185 CFM at 7-bar, stands as a versatile solution for various applications on trucks. Its durable box-type design ensures resilience during transportation, making it an ideal choice for mobile compressed air needs. This air compressor for sale diesel proves valuable for truck-mounted pneumatic systems, supporting tasks such as tire inflation, air brake maintenance, and on-site pneumatic tool operation. The YANMAR engine's reliability ensures consistent performance, making it a dependable component for trucks requiring on-the-go compressed air for diverse industrial and maintenance applications.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
