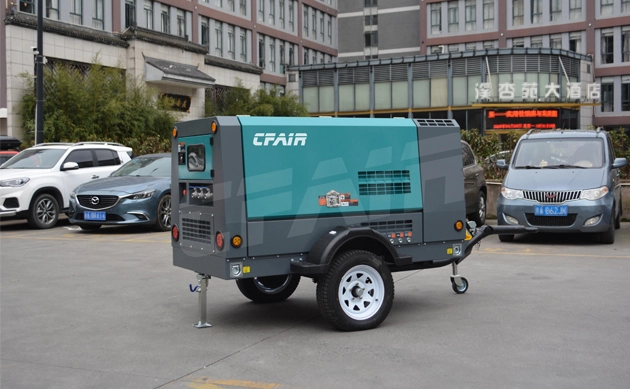

CF185MF-7 185 CFM 7 Bar Portable Diesel Engine Screw Air Compressor with Wheels

CF185MF-7 is a 5m³ portable diesel screw compressor ideal for rental applications. Its compact size makes it easy to store, transport and maneuver on site. The ruggedness of CFAIR diesel screw air compressor in combination with the reliable FAWDE engine, ensure an increased lifetime even in the toughest conditions.

Features of CF185MF-7 185 CFM 7bar Portable Diesel Screw Air Compressor with Wheels

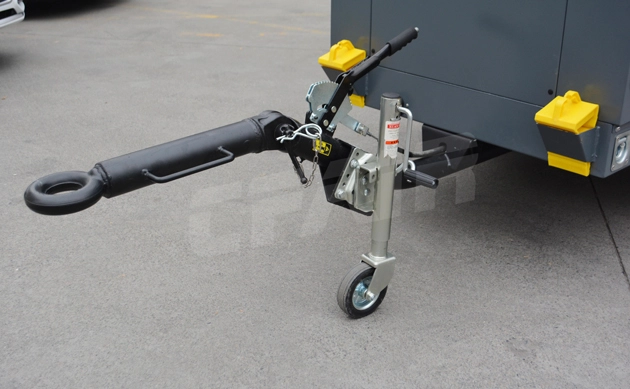

1)More compact, towable, and lighter than ever

2)Engineered for easy servicing

3)Easy-to-reach serviceable components

4)State-of-the-art cat engine

5)Two-stage heavy-duty air filtration

6)Hinged, pad-lockable cover and isolator with guarding for all moving parts

7)Heat cladding insulation for all hot exhaust surfaces


Our 185 cfm portable air compressor provides you with:

Long Runtimes – With improved fuel efficiency for up to 10 hours of runtime, there’s no need to stop midday to refuel.

Famous Air End – At the heart of the diesel powered air compressor for sale is an air end supported by German technology, continuing the tradition of reliable durability. The design method of our diesel screw compressor head is processed using a high-precision CNC center. At the same time, we use advanced three-dimensional coordinate system to conduct quality inspection on product.

Easy Maneuverability  –  Portable air compressor China models feature a compact design for easier maneuverability – whether on the jobsite or behind a truck.

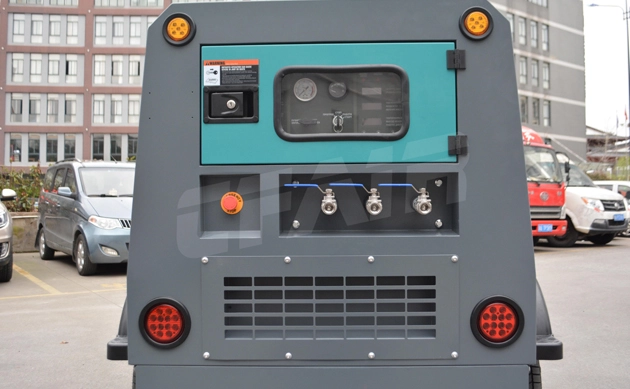

An Easy Controller  – Our controller, which is on the curbside to help keep the operator safe, quickly and easily understands the status of compressor, day in and day out.


Noise Reduction: Certain models may incorporate sound attenuation technology, such as QuieTech, to minimize noise levels during operation.

Noise Control

• Super silent full load noise levels from as low as 64 dB(A) at 7 m.

• Low engine and air end speed design is intrinsically quieter.

• Steel body panels lined with sound absorbent material.

• Computer aided sound path analysis and attenuation design.

Environmental Protection

• Low fuel consumption of the diesel screw compressor for sale ensures a reduced carbon footprint.

• Low exhaust emissions cause minimal harm to the atmosphere.

• Low noise levels protect ambient conditions and workers’ hearing.

• Almost 100% recyclable at end of service life to save the earth’s precious resources.


Specs of CF185MF-7 185 CFM 7bar Portable Diesel Screw Air Compressor with Wheels

MODEL
CF185MF-7
Air End Type
Rotary Twin Screw, Single stage
Air Outlets
3/4'' x 3
Free Air DeliveryCFM (mm³/min)185 (5.2)
Working Pressurebar (psi)7 (101.5)
Engine Model
CHINA FAWDE
Fuel
Diesel
Emission
China Stage II
Engine Type
4 cylinder, Direct-injection
DisplacementL2.27
L X W X Hmm3375*1610*1600
Weightkg1060

Note: Please feel free to contact us if any more customized requirements!

Application of CF185MF-7 185 CFM 7bar Portable CFM 185 Diesel Screw Air Compressor with Wheels

The CFAIR portable CFM 185 diesel screw air compressor, driven by a FAWDE engine and utilizing diesel, aligns seamlessly with diverse industrial needs. Its portability makes it a practical choice for a variety of applications, including highway and railway projects, mining operations, water conservancy initiatives, shipbuilding, urban construction, energy projects, and military endeavors. The 185 CFM diesel screw compressor capacity ensures a robust supply of compressed air, catering to the demands of different tasks in these industries. The integration of a reliable FAWDE engine, along with its portable design, solidifies its position as a versatile and indispensable tool for on-the-go compressed air requirements across various sectors. The CFAIR diesel air compressor factory ensures that each unit meets the highest standards of quality and performance, making it a trusted choice for professionals in the field.

Contact CFAIR Now
Want to Get More Details About Air Compressor? We're waiting for your contact!

Related 185 CFM Portable Air Compressor

CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
