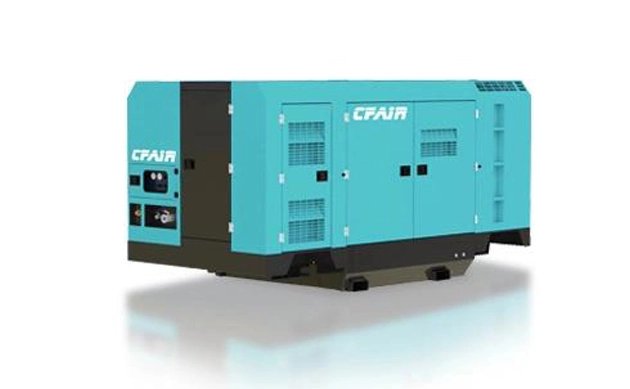

CF830BCK-10.5 Mining Compressor: Powering Efficiency in Extractive Operations
The CF830BCK-10.5 is a robust and portable mining air compressor designed to optimize efficiency in extractive operations. With a CUMMINS diesel engine, this mining compressor for sale delivers a substantial 23.4 m³/min (830 CFM) of air at 10.5 Bar (152.5 PSI). The box-type design, coupled with an aftercooler function, ensures reliable and powerful compressed air for diverse mining applications, making it an indispensable asset for the mining industry.
Model: CF830BCK-10.5
Portable diesel mining compressor: Box type with aftercooler function
Air delivery: 23.4 m³/min | 830 CFM
Pressure: 10.5 Bar | 152.5 PSI
Compressor diesel engine: CUMMINS
CUMMINS Diesel Engine: Ensures powerful and reliable performance for mining operations.
High Air Delivery: The mining air compressor generates 23.4 m³/min (830 CFM) for efficient extraction processes.
Increased Pressure: This mining compressor for sale operates at 10.5 Bar (152.5 PSI) for enhanced productivity.
Portable Box-Type Design: The mining compressor facilitates easy transportation to different mining sites.
Aftercooler Function: Enhances efficiency by cooling compressed air, optimizing extraction processes.
Durable Construction: Engineered for longevity and reliability in challenging mining environments.
Versatile Applications: The diesel powered air compressor for sale is tailored features for diverse mining tasks, ensuring optimal performance.
Efficient Extractive Operations: Designed to maximize efficiency in various mining applications.
With aftercooled diesel compressors, showcasing precise temperature control, moisture prevention, and extended equipment life for diverse operational needs.
1)The GHH screw air end achieves an exceptional compression ratio, leading to substantial energy savings and increased efficiency in operation;
2)CUMMINS engine,making people's lives better by powering a more prosperous world;
3)The pressure control adopts the pneumatic control component, the power saving capacity adjustment, 0% ~ 100% load control, can adjust the power consumption automatically with the actual use of the amount;
4)High efficient and excellent performance Air Filter and Intake System
5)The use of safe and reliable, with explosion-proof, overload, short circuit, phase break, leakage, anti self starting protection, but also with over temperature automatic shutdown protection and capacity adjustment, pressure valve, safety valve three protection, to prevent mining compressor overpressure operation;
6)Flexible moving for the mining blasting environment, the configuration of enhanced twisting axle and traction system, high-load meridian large tires, easy to cope with the mine's harsh road ;
7) Tried and tested airend: Designed and made in high-quality airend, large bearings and low speeds – guarantee of high efficiency and a long service life.
8) Alternative Colors：
Blue-Equivalent RAL5017
Green-Equivalent RAL6024
Red-Equivalent RAL3020
Orange-Equivalent RAL2009
Other color available as customer request.
9) Efficiency – a question of quality: We can offer constantly high free air delivery at astonishingly low power consumption. This, together with the perfected oil separation system, results in an exemplary efficiency yield.
10) Abundant heat dissipation system ensures resilience in high-temperature and high-dust environments, resulting in a reduced failure rate.
| MODEL | CF830BCK-10.5 | |
| COMPRESSOR | ||
| Air End Type | Rotary Twin Screw, Single stage | |
| Air Outlets | 3/4'' x 1 + 2'' x 1 | |
| CFM | 830 | |
| Free Air Delivery | mm³/min | 23.4 |
| Working Pressure | bar | 10.5 |
| psi | 152.3 | |
| Discharge Air Temperature | °C | Atmospheric Temperature +20°C |
| ENGINE | ||
| Engine Model | CUMMINS | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 6 cylinder, Direct-injection | |
| Displacement | L | 8.9 |
| DIMENSION & WEIGHT | ||
| L X W X H | mm | 3600*1750*2055 |
| Weight | kg | 3200 |
Note: Please feel free to contact us if any more customized requirements!
The CF830BCK-10.5 mining compressor for sale, equipped with a CUMMINS diesel engine and specialized features, serves diverse applications in the mining industry:
Drilling Operations: The air compressor for drilling provides reliable and high-pressure air for efficient drilling.
Extraction Processes: The mining air compressor supports extraction activities with a consistent air supply.
Tunneling and Excavation: The mining compressor optimizes efficiency in tunnel construction and excavation projects.
Ore Processing: Facilitates pneumatic processes in ore extraction and refining.
Mining Exploration: The mining compressor is ideal for drilling and exploration activities to assess mineral deposits.
Site Construction: The air compressor for construction site supports compressed air needs for infrastructure development within mining sites.
Versatile Mining Tasks: Tailored features for a wide range of mining applications, ensuring productivity and reliability.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
