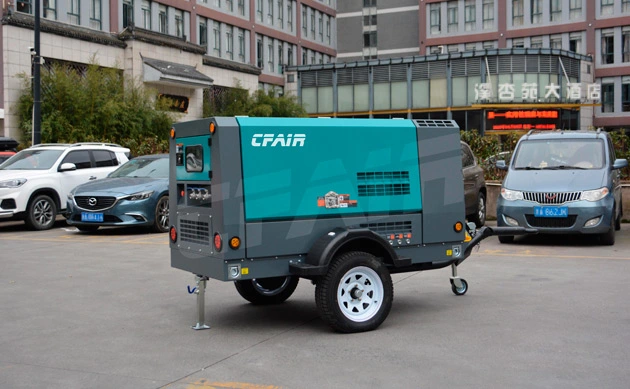

The CF190MCI-7 Towable Pull behind compressor by CFAIR is a powerful solution for various applications. With a robust ISUZU diesel engine, this pull behind compressor for sale delivers 5.4 m³/min (190 CFM) at 7 Bar (101.5 PSI). The towable design, coupled with an aftercooler, ensures efficient and portable compressed air for construction sites and industrial tasks. The Pull Behind Compressor CF190MCI-7 embodies reliability and performance in mobile applications.
Model: CF190MCI-7
Towable pull behind compressor with aftercooler
Air delivery: 5.4 m³/min | 190 CFM
Pressure: 7 Bar | 101.5 PSI
Compressor diesel engine: ISUZU
1）Wide range of pressures, with dual pressure option.
2）Compact, ergonomic, durable machines.
3）Lowest acoustic pressure levels as indicated in current legislation provisions.
4）Emissions according to the latest parameters
5）Accessibility for maintenance.
6）Intelligent System – avoids starting load on engine and ensures low pressure shut down.
7）Anti-repetitiveness system on the engine start.Avoids starter motor issues and improves starter motor life.

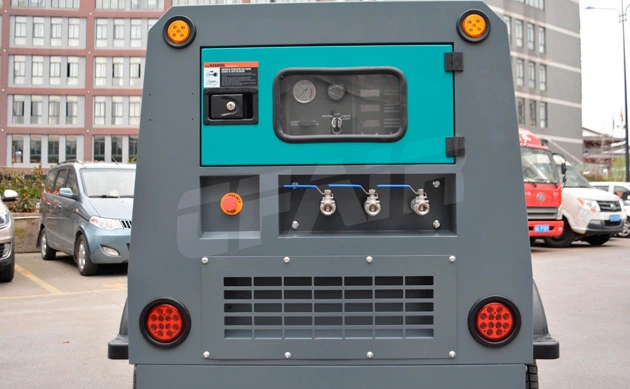

8）Centralized control panel for easy monitoring. Low life cost.
9）Manufactured in compliance with applicable international standards

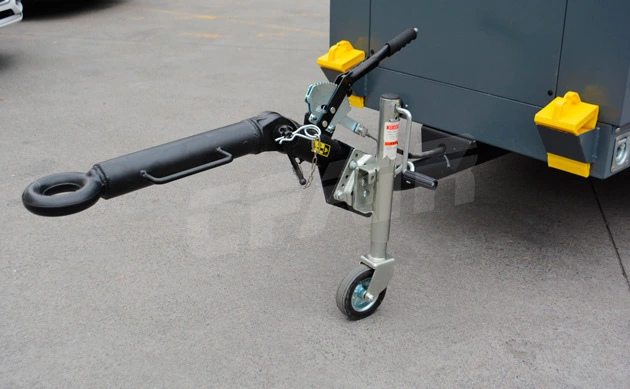

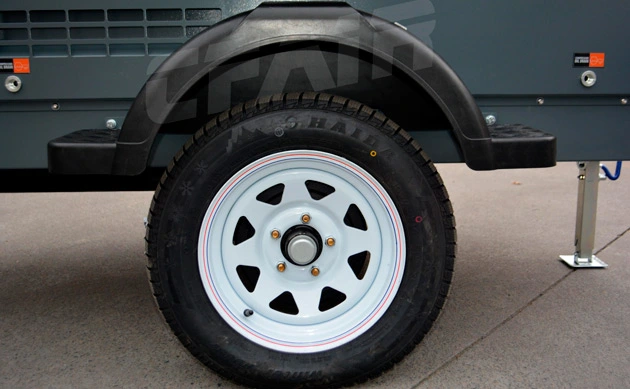

10）Skid, axles of different types, with or without brakes, lights to be fit for road circulation
Our portable pull behind compressors provide you with:
Long Runtimes – With improved fuel efficiency for up to 10 hours of runtime, there’s no need to stop midday to refuel.
Famous Air End – At the heart of the pull behind compressors for sale is an air end supported by German technology, continuing the tradition of reliable durability. The design method of our pull behind compressor head is processed using a high-precision CNC center. At the same time, we use advanced three-dimensional coordinate system to conduct quality inspection on product.
Easy Maneuverability – pull behind compressors feature a compact design for easier maneuverability – whether on the jobsite or behind a truck.
An Easy Controller – Our controller, which is on the curbside to help keep the operator safe, quickly and easily understands the status of compressor, day in and day out.
Noise Reduction: Certain models may incorporate sound attenuation technology, such as QuieTech, to minimize noise levels during operation.
Noise Control
• Steel body panels lined with sound absorbent material.
• Computer aided sound path analysis and attenuation design.
Environmental Protection
• Low fuel consumption ensures a reduced carbon footprint.
• Low exhaust emissions cause minimal harm to the atmosphere.
• Low noise levels protect ambient conditions and workers’ hearing.
• Almost 100% recyclable at end of service life to save the earth’s precious resources.
Diesel Engine
• The engine match selection for each pull behind compressor model is based on achieving optimum performance and reliability with the lowest possible fuel consumption.
• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.
Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the diesel powered air compressor for sale runs out of fuel.
• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.
| MODEL | CF190MCI-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |

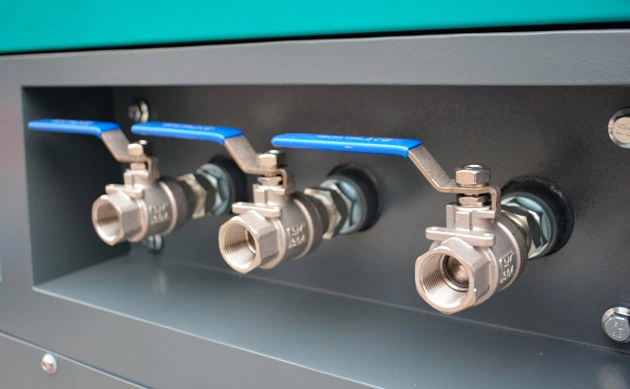

| Air Outlets | 3/4'' x 3 | |
| Free Air Delivery | CFM (mm³/min) | 190 (5.4) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Discharge Air Temperature | °C | Atmospheric Temperature +20°C |
| Engine Model | ISUZU | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 4 cylinder, Direct-injection | |
| Displacement | L | 2.771 |
| L X W X H | mm | 3375*1610*1600 |
| Weight | kg | 1020 |
Note: Please feel free to contact us if any more customized requirements!
The CF190MCI-7 Towable pull behind compressor, featuring an ISUZU diesel engine and advanced attributes, finds versatile applications:
Construction Sites: The construction air compressor powers industrial pneumatic tools and machinery.
Industrial Projects: Provides compressed air for various applications.
On-Site Operations: Enhances precision and efficiency across diverse tasks.
Mobile Repairs: Towable design for quick and portable on-the-go fixes.
Sandblasting Operations: The sandblasting air compressor for sale delivers precise and powerful performance.
Emergency Situations: Quick and reliable compressed air supply.
Versatile On-the-Go Use: The pull behind compressor for sale is suitable for different working conditions, ensuring optimal performance across construction and industrial settings, such as mining air compressor and air compressor for road construction.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
