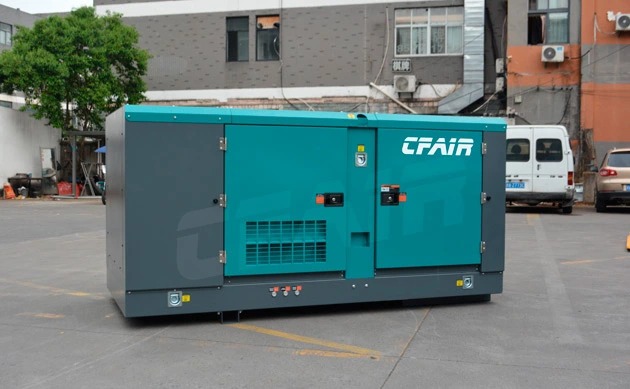

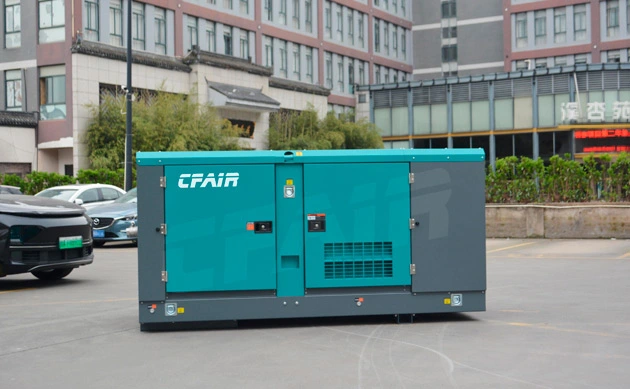

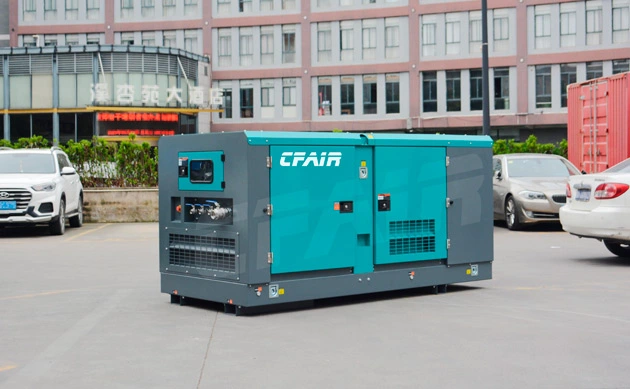

CF390BCK-10.5 is a box-type portable diesel air compressor for blasting and painting designed to redefine efficiency. Offering air delivery of 11 m³/min (390 CFM) at a pressure of 10.5 Bar (152.5 PSI), this blasting compressor stands as a testament to power and precision. Driven by a reliable Cummins diesel engine, the air compressor for blasting ensures robustness and consistent performance. The integrated aftercooler function supplying quality air, maintaining optimal efficiency.
Model: CF390BCK-10.5
Portable diesel blasting compressor: Box type with aftercooler function
Air delivery: 11 m³/min | 390 CFM
Pressure: 10.5 Bar | 152.5 PSI
Compressor diesel engine: CUMMINS
Box-Type Mobility: Sturdy design for easy transportability across diverse job sites.
Adaptive Cooling System: With an adaptive cooling system, aftercoolers adjust to varying operating conditions, providing consistent and efficient cooling for the diesel powered air compressor.
Versatile Applications: The air compressor for blasting and painting is suited for various applications, providing reliable compressed air.
Durable Construction: The air compressor for blasting is built to withstand rugged conditions, ensuring longevity and reliability.
User-Friendly Operation: Designed for ease of use, making it accessible for operators of varying skill levels.
1)Advanced airends and motors that deliver uncompromising efficiency
2) Optional single-stage airends and variable speed drives (VSD) to save even more on energy costs, even at partial loads
3)Simplified, compact package designs for easier access to internal parts, quicker maintenance, minimized piping and reduced connections
4)Durable package designs and drive components, as well as robust hoses and pipe connections to eliminate leaks
5) Intuitive control systems to ensure reliable operation by continuously monitoring operational parameters
6) Low noise: Their enhanced safety features and very low noise levels make them the perfect choice for any jobsite.
7) Color: Customed
| MODEL | CF390BCK-10.5 | |
| Air End Type | Rotary Twin Screw, Single stage | |

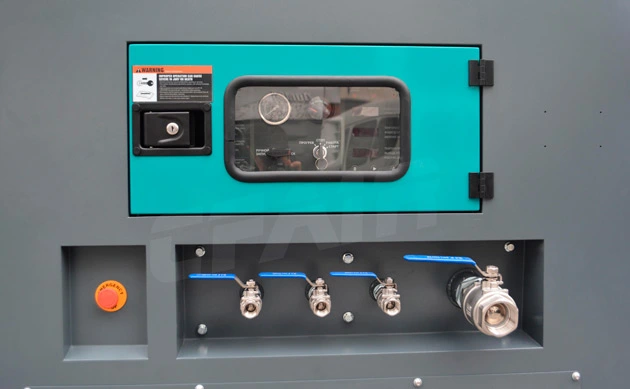

| Air Outlets | 3/4'' x 3 + 2'' x 1 | |
| Free Air Delivery | CFM (mm³/min) | 390 (11.0) |
| Working Pressure | bar (psi) | 10.5 (152.3) |
| Discharge Air Temperature | °C | Atmospheric Temperature +20°C |

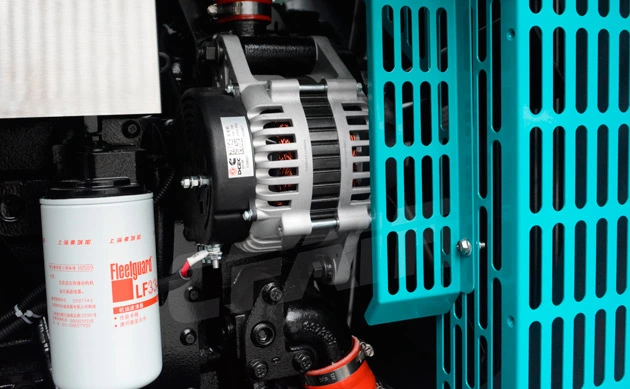

| Engine Model | CUMMINS | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 6 cylinder, Direct-injection | |
| Displacement | L | 5.9 |
| L X W X H | mm | 2900*1350*1465 |
| Weight | kg | 1950 |
Note: Please feel free to contact us if any more customized requirements!
The CF390BCK-10.5 Box-Type Portable Diesel air compressor for blasting and painting is the ideal companion for sandblasting tasks, providing a robust and steady air supply. With air delivery of 11 m³/min (390 CFM) and a pressure of 10.5 Bar (152.5 PSI), the blasting compressor ensures precision and efficiency in achieving optimal sandblasting results. Elevate your sandblasting projects with CFAIR CF390BCK-10.5 sandblasting air compressor for sale.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
