As a leading provider of diesel compressor in oil filed and offshore application, CFAIR compressor is committed to delivering comprehensive air compression solutions that match even the most demanding applications. We offer industrial solutions for the oil and gas industry that perform reliably under unfavorable environmental conditions.As a leading provider of diesel compressor in oil filed and offshore application, CFAIR compressor is committed to delivering comprehensive air compression solutions that match even the most demanding applications. We offer industrial solutions for the oil and gas industry that perform reliably under unfavorable environmental conditions. Get in touch with the experts at CFAIR today to learn more.
100% Oil-free
Airflow rated at 700 CFM @10.3 bar

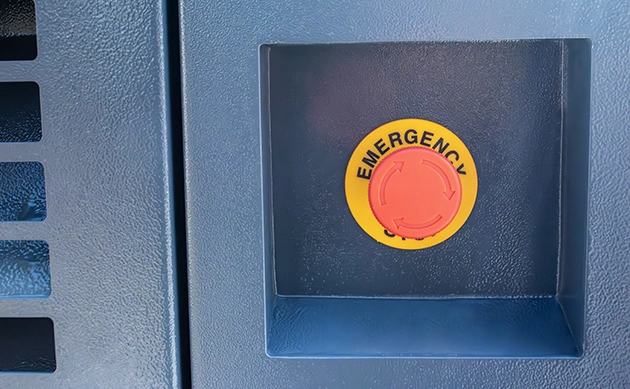

Emergency shutdown switch

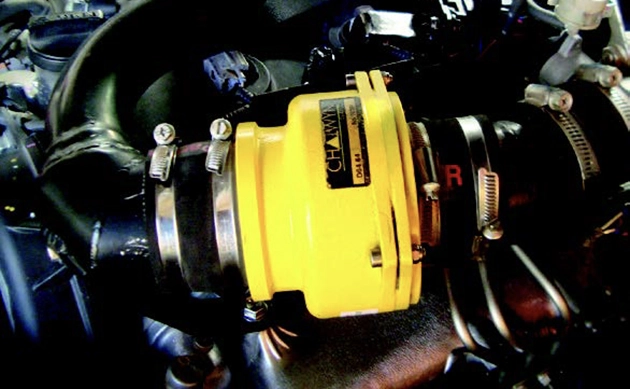

Spark arrestor
Over speed shutdown system
Battery isolator switch
After cooler diesel powered air compressor
Extra fuel connector
Efficient diesel-powered engine with EPA T4F / EV Stage V emission standard are available
Forklift pockets standard for ease of transport
Lift bail provides fixed point for overhead lifting
Spillage free frame
Fire Suppression System
Anti-static belts

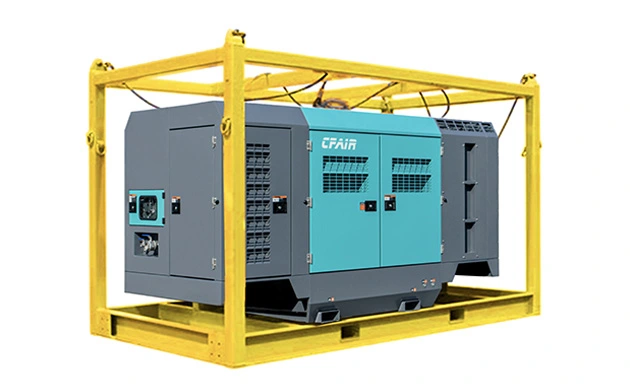

Rig-safe version
Highest productivity：
1）Oil Free Class 0 certified air delivered for the most demanding industries
2）Intuitive Controller with extensive events history and advanced connectivity
Noise Control
• Super silent full load noise levels from as low as 64 dB(A) at 7 m.
• Low engine and air end speed design is intrinsically quieter.
• Steel body panels lined with sound absorbent material.
• Computer aided sound path analysis and attenuation design.
Environmental Protection
• Minimal fuel consumption effectively reduces carbon footprint.
• Low exhaust emissions mitigate atmospheric impact.
• Reduced noise levels safeguard ambient conditions and preserve workers' hearing.
Pivoting Drawbar: Helps optimize space once unit is placed
Diesel Engine feature:
1）The choice of engine for each compressor model is made to ensure optimal performance and reliability while minimizing fuel consumption.
2） It boasts industry-leading levels of low fuel consumption, exhaust emissions, and noise. An automatic fuel priming and air bleed system negates the necessity of opening injector lines in the event of fuel depletion.
3）Additionally, it incorporates a two-stage fuel filtration system comprising a water sedimenter and a high-capacity pleated filter element.
| MODEL | CFOF700MK-10.3 | |

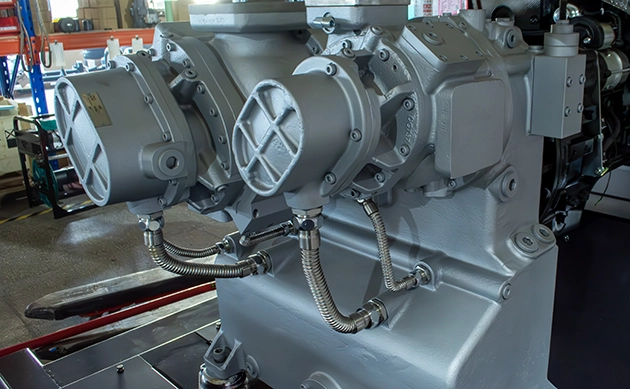

| Air End Type | Rotary Twin Screw, Oil-Free | |
| Air Outlets | 2'' x 2 | |
| Free Air Delivery | CFM (mm3/min) | 700 (19.7) |
| Working Pressure | bar (psi) | 10.3 (149.35) |
| Engine Model | CUMMINS | |
| Fuel | Diesel | |
| Emission | CHINA II / EU Stage V / EPA T4F | |
| Engine Type | 6 cylinder, Direct-injection | |
| Displacement | L | 8.3 |
| L X W X H | mm | 4200*2200*2440 |
| Weight | kg | 4500 |
Note: Please feel free to contact us if any more customized requirements!
This type of oil free diesel air compressor is popularly used in offshore drilling operations because they supply the much-needed pneumatic energy for powering offshore drills. Greater forces are necessary for these applications because of the harsher conditions that drillers have to face to penetrate the earth’s surface. This is because, unlike onshore drilling operations where holes are drilled on the ground, offshore drilling is performed thousands of feet underwater on the seabed.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
