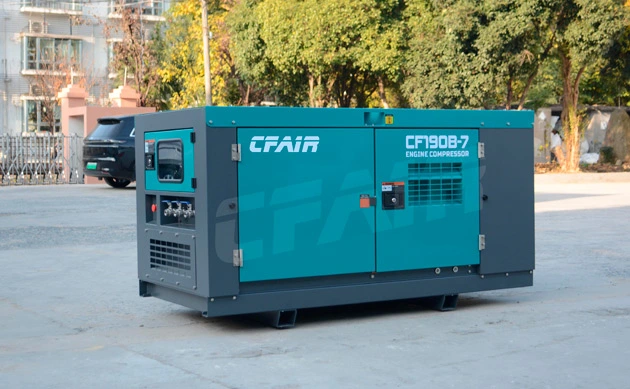

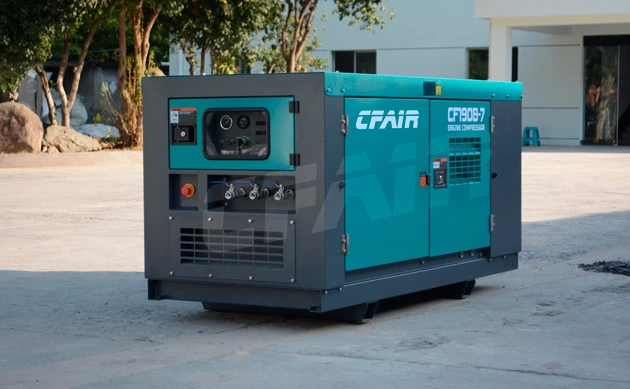

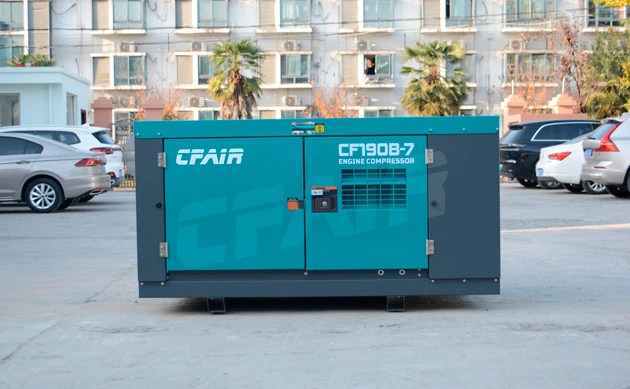

The CF190BCI-7 Portable Diesel Compressor, characterized by a box-type design with an aftercooler function, is a reliable solution for various applications. Driven by an efficient ISUZU diesel engine, it delivers a substantial air supply of 5.4 m³/min (190 CFM) at 7 Bar (101.5 PSI). Its portability, coupled with advanced features, makes it an ideal choice for construction sites, industrial tasks, and versatile on-the-go applications.
Model: CF190BCI-7
Portable diesel compressor:Box type with aftercooler function
Air delivery: 5.4 m³/min | 190 CFM
Pressure: 7 Bar | 101.5 PSI
Compressor diesel engine: ISUZU
1）Wide range of pressures, with dual pressure option.
2）Compact, ergonomic, durable machines.
3）Lowest acoustic pressure levels as indicated in current legislation provisions.
4）Emissions according to the latest parameters
5）Accessibility for maintenance.
6）Intelligent System – avoids starting load on engine and ensures low pressure shut down.
7）Anti-repetitiveness system on the engine start.Avoids starter motor issues and improves starter motor life.
8）Centralized control panel for easy monitoring. Low life cost.
9）Manufactured in compliance with applicable international standards
10）Skid, axles of different types, with or without brakes, lights to be fit for road circulation
Our portable air compressors provide you with:
Long Runtimes – With improved fuel efficiency for up to 10 hours of runtime, there’s no need to stop midday to refuel.
Famous Air End – At the heart of the pull behind air compressor for sale is an air end supported by German technology, continuing the tradition of reliable durability. The design method of our pull behind air compressor head is processed using a high-precision CNC center. At the same time, we use advanced three-dimensional coordinate system to conduct quality inspection on product.
Easy Maneuverability – pull behind air compressors feature a compact design for easier maneuverability – whether on the jobsite or behind a truck.
An Easy Controller – Our controller, which is on the curbside to help keep the operator safe, quickly and easily understands the status of air compressor wholesale, day in and day out.
Noise Reduction: Certain models may incorporate sound attenuation technology, such as QuieTech, to minimize noise levels during operation.
Noise Control
• Steel body panels lined with sound absorbent material.
• Computer aided sound path analysis and attenuation design.
Environmental Protection
• Low fuel consumption ensures a reduced carbon footprint.
• Low exhaust emissions cause minimal harm to the atmosphere.
• Low noise levels protect ambient conditions and workers’ hearing.
• Almost 100% recyclable at end of service life to save the earth’s precious resources.

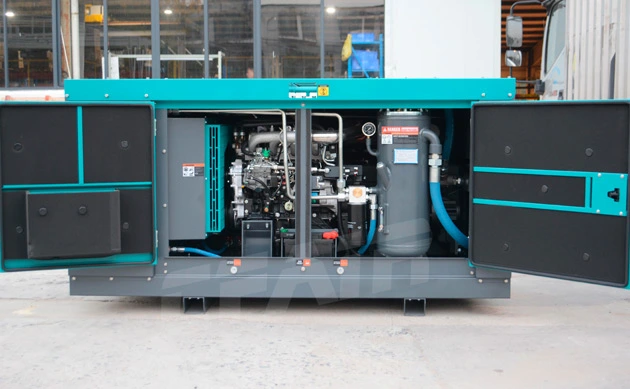

Diesel Engine
• The engine match selection for each pull behind air compressor model is based on achieving optimum performance and reliability with the lowest possible fuel consumption.
• Low fuel consumption and both exhaust and noise emission levels are amongst the best in class.
Automatic fuel prime and air bleed system eliminates the need for opening injector lines if the compressor runs out of fuel.
• Two-stage fuel filtration via water sedimenter and high capacity pleated filter element.
| MODEL | CF190BCI-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |
| Air Outlets | 3/4'' x 3 | |
| Free Air Delivery | CFM (mm³/min) | 190 (5.4) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Discharge Air Temperature | °C | Atmospheric Temperature +20°C |
| Engine Model | ISUZU | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 4 cylinder, Direct-injection | |
| Displacement | L | 2.771 |
| L X W X H | mm | 2100*980*1100 |
| Weight | kg | 930 |
Note: Please feel free to contact us if any more customized requirements!
The CF190BCI-7 Portable Diesel Compressor, equipped with an ISUZU diesel engine and advanced features, serves various applications:
Construction Sites: The construction compressor powers pneumatic tools and machinery.
Industrial Projects: Supplies compressed air for diverse applications.
On-Site Operations: Enhances precision and efficiency across tasks.
Versatile On-the-Go Use: Ideal for mobile repairs and emergency situations.
Sandblasting Operations: The sandblasting air compressor for sale delivers precise and powerful performance.
Manufacturing: Supports pneumatic tools and equipment.
Roadwork: The air compressor for road construction is suitable for tasks requiring portable and efficient compressed air.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
