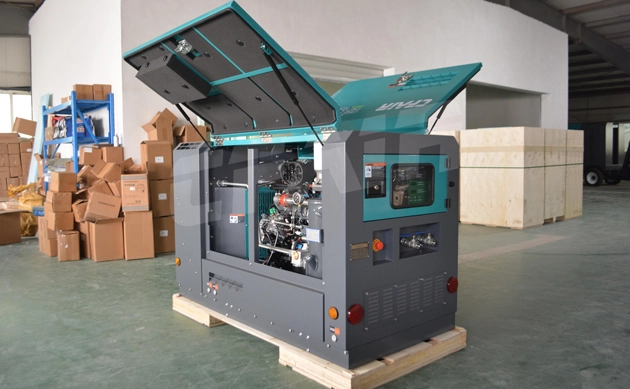

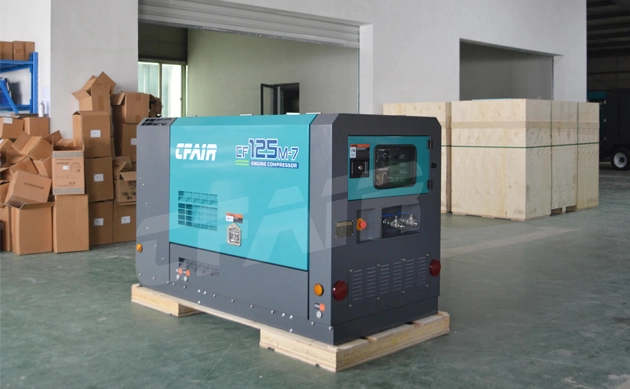

CFAIR 120 cfm box air compressor is a device that can deliver 120 cubic feet of air per minute at a certain pressure which is 7bar. Equipped with ISUZU engine and its fuel consumption is 6.1L.

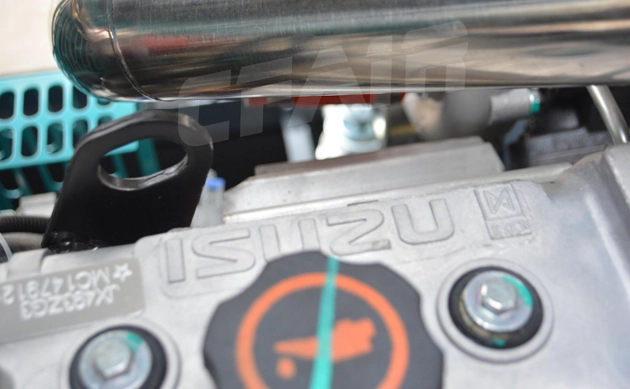

The CFAIR 120cfm-7bar air compressor applicated with ISUZU engine, very durable.
Air end used by GHH technology with 5year warranty.
Noise level is 68dBA, which is suitable for city construction.
| MODEL | CF120BI-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |
| Air Outlets | 3/4'' x 2 | |
| Free Air Delivery | CFM (mm³/min) | 120 (3.4) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Engine Model | ISUZU | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 4 cylinder, Direct-injection | |
| Displacement | L | 2.771 |
| L X W X H | mm | 1880*915*1220 |
| Weight | kg | 860 |
Note: Please feel free to contact us if any more customized requirements!
CFAIR 120cfm box air compressor is widely used in mining industry. In the process of ore flotation, the useful minerals in the ore are raised together with the foam through the mixture of air and chemicals to realize the separation of minerals. The air is provided by the air compressor, so the CFAIR diesel compressor plays an important role in the ore flotation process. In addition, there are some other processes in the beneficiation process that need to use air compressors, such as pneumatic conveying, pneumatic mixing and so on.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
