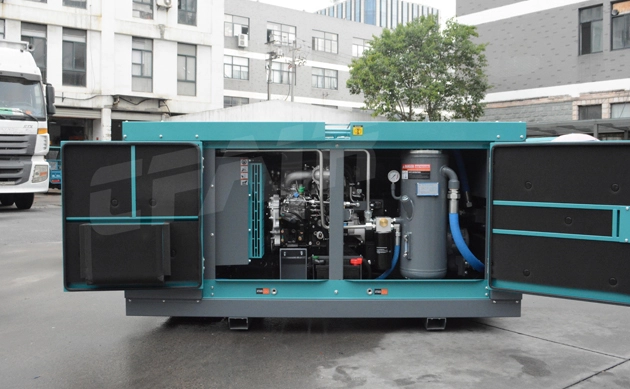

CFAIR 185CFM air compressor are designed for mounting in confined spaces such as on service trucks. They are also ideal for stationary applications. Access is only required to one side for routine maintenance. The all-steel cabinets are lockable, silenced and weatherproof. Made in China.
Equipped with efficient and reliable compression main engine, the main engine and diesel engine are directly connected through high elastic coupling, with higher efficiency, better reliability and longer service life. The air volume control system is simple and reliable. According to the amount of air used, the air intake can be automatically adjusted from 0 to 100%.
| MODEL | CF185BI-7 | |
| Air End Type | Rotary Twin Screw, Single stage | |
| Air Outlets | 3/4'' x 3 | |
| Free Air Delivery | CFM (mm³/min) | 185 (5.2) |
| Working Pressure | bar (psi) | 7 (101.5) |
| Engine Model | ISUZU | |
| Fuel | Diesel | |
| Emission | China Stage II | |
| Engine Type | 4 cylinder, Direct-injection | |
| Displacement | L | 2.771 |
| L X W X H | mm | 2100*980*1100 |
| Weight | kg | 930 |
Note: Please feel free to contact us if any more customized requirements!

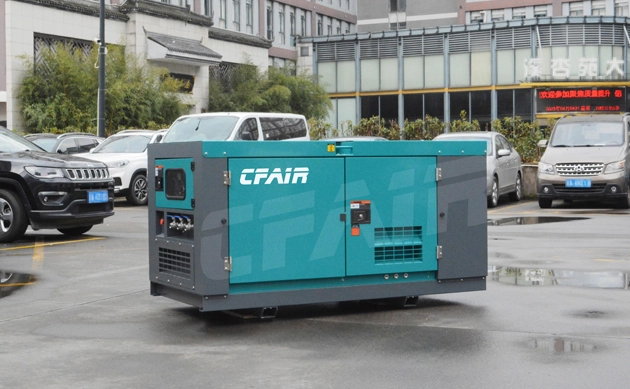

The CFAIR 185 CFM box-type air compressor, powered by an efficient ISUZU diesel engine, is specifically designed with a short profile, making it an ideal choice for installation on trucks. This compact configuration enhances its suitability for mobile applications, allowing it to be efficiently mounted on trucks for on-the-go compressed air needs. Tailored for versatility and efficiency, this compressor caters to the requirements of various truck-mounted tasks, ensuring a reliable and potent supply of compressed air. The ISUZU engine further contributes to its performance, making this box-type air compressor a valuable and compact solution for a range of truck-based applications.
CFAIR recommends some popular products on the market based on customers' actual applications and offers customization services according to specific customer requirements. Simultaneously, CFAIR is committed to customizing machinery based on customers' specific needs. Whether customers require solutions tailored to special environments, specific flow rates, or customized pressure requirements, CFAIR provides personalized customization services, ensuring that products perfectly meet the practical engineering and application needs of customers. Through flexible customization options, CFAIR offers customers a broader range of choices to meet the requirements of different industries and application fields.
